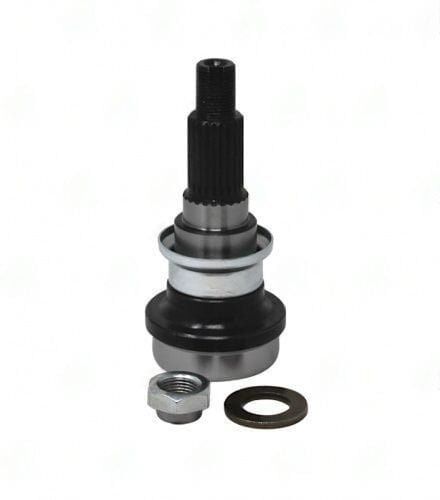

1353-232 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.344″ – End To Weld 4.000
$63.98
17 People watching this product now!
Description
The 1353-232 Stub & Midship Shaft is designed for Toyota applications, featuring a Bearing Dia of 1.181″.
Full Description
When you encounter a vibration or noise coming from the driveshaft area, it could be a sign that the Stub & Midship Shaft needs replacement. The 1353-232 is specifically engineered to fit Toyota OE Tubes, ensuring a precise connection that maintains torque transfer from the transmission to the differential. With a Bearing Diameter of 1.181" and a Butt Diameter of 2.344", this shaft is built to handle the demands of your vehicle.
The 1353-232 features 23 X 0.990 splines with a length of 1.375", providing a secure fit that prevents slippage under load. The End To Weld measurement of 4.000" ensures proper alignment during installation, which is critical for maintaining balance and preventing vibrations. Additionally, the Tube Diameter of 2.500" and a wall thickness of 0.083" contribute to the overall strength and durability of the shaft.
To ensure optimal performance, always check the phasing marks during installation and torque the bolts to specification. If you notice any vibrations after installation, consider balancing the shaft to eliminate potential issues.
- Fits Toyota OE Tube
- Includes 1374-233 nut
- Use with 1301-231
- Verify spline count and length for compatibility
- Check runout before final installation
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 4.000 |
| Notes | Fits Toyota OE Tube / 1374-233 nut included ,Use with: 1301-231 |
| Partn number | 1353-232 |
| Splines count dia | 23 X 0.990 |
| Splines length | 1.375 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | FIXED |
