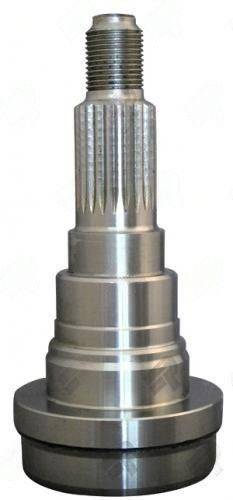

1353-231 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.435″ – End To Weld 4.000
$79.74
Description
The 1353-231 Stub & Midship Shaft is a critical component in the driveline, engineered to ensure efficient torque transfer from the transmission to the differential. With a bearing diameter of 1.181″ and a butt diameter of 2.435″, this shaft is specifically designed to handle the demands of Toyota applications. The 23 X 0.990 splines provide a secure connection, allowing for reliable operation under various load conditions.
One of the key features of the 1353-231 is its end-to-weld measurement of 4.000″ and a spline length of 1.375″. These dimensions are crucial for maintaining the correct alignment and phasing within the driveline system, which helps to prevent vibrations and potential failures. The tube diameter wall of 2.560×0.065 adds to the structural integrity, ensuring that the shaft can withstand the torque loads it will encounter.
When installing the 1353-231, it is essential to verify the fit with the Toyota OE Tube and use the included 1374-233 nut for secure fastening. This shaft is designed to work seamlessly with the 1301-231 component, making it a reliable choice for technicians and builders alike.
- Verify spline count and dimensions before installation.
- Ensure proper phasing marks are aligned during assembly.
- Torque fasteners to the manufacturer’s specifications.
- Inspect for runout and balance to prevent vibrations.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.435 |
| End to weld |
4.000 |
| Notes |
Fits Toyota OE Tube / 1374-233 nut included ,Use with: 1301-231 |
| Partn number |
1353-231 |
| Remaining stock |
>10 |
| Splines count dia |
23 X 0.990 |
| Splines length |
1.375 |
| Tube dia |
2.560 |
| Tube wall |
0.065" |
| Style |
FIXED |
