Brand:

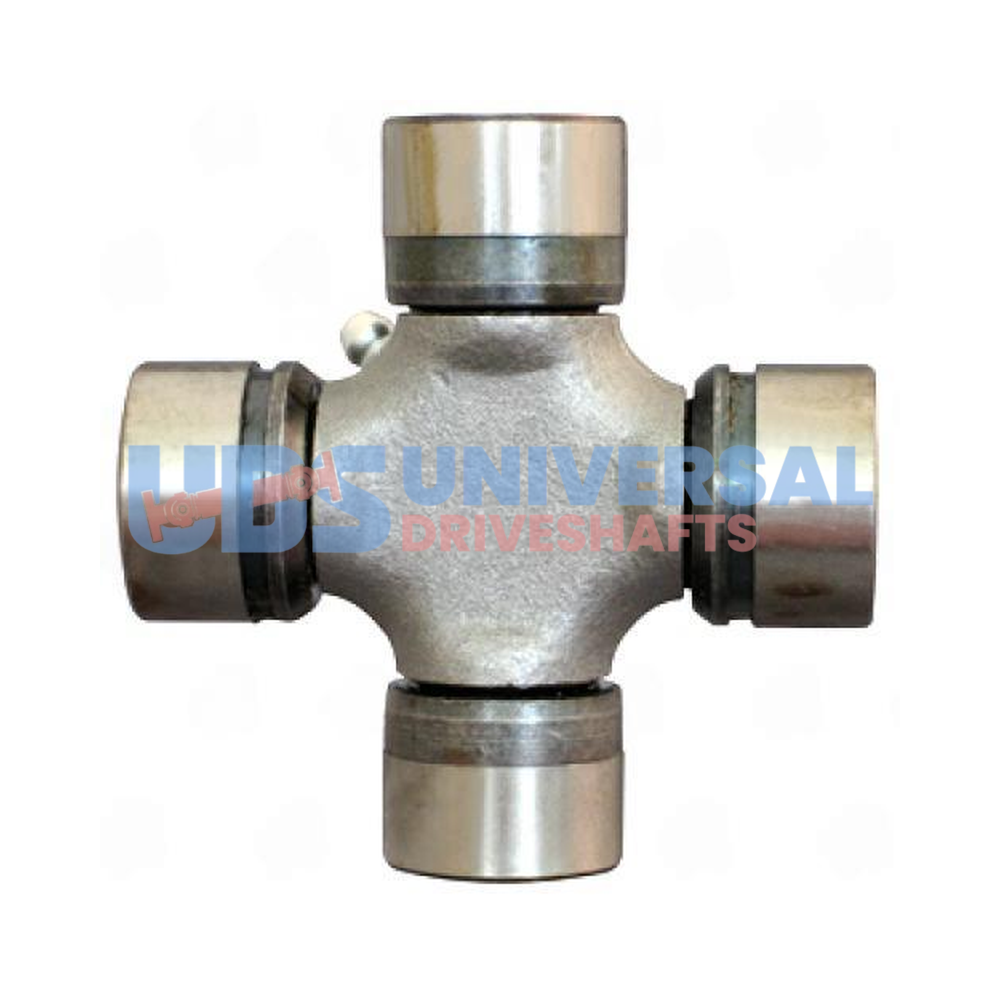

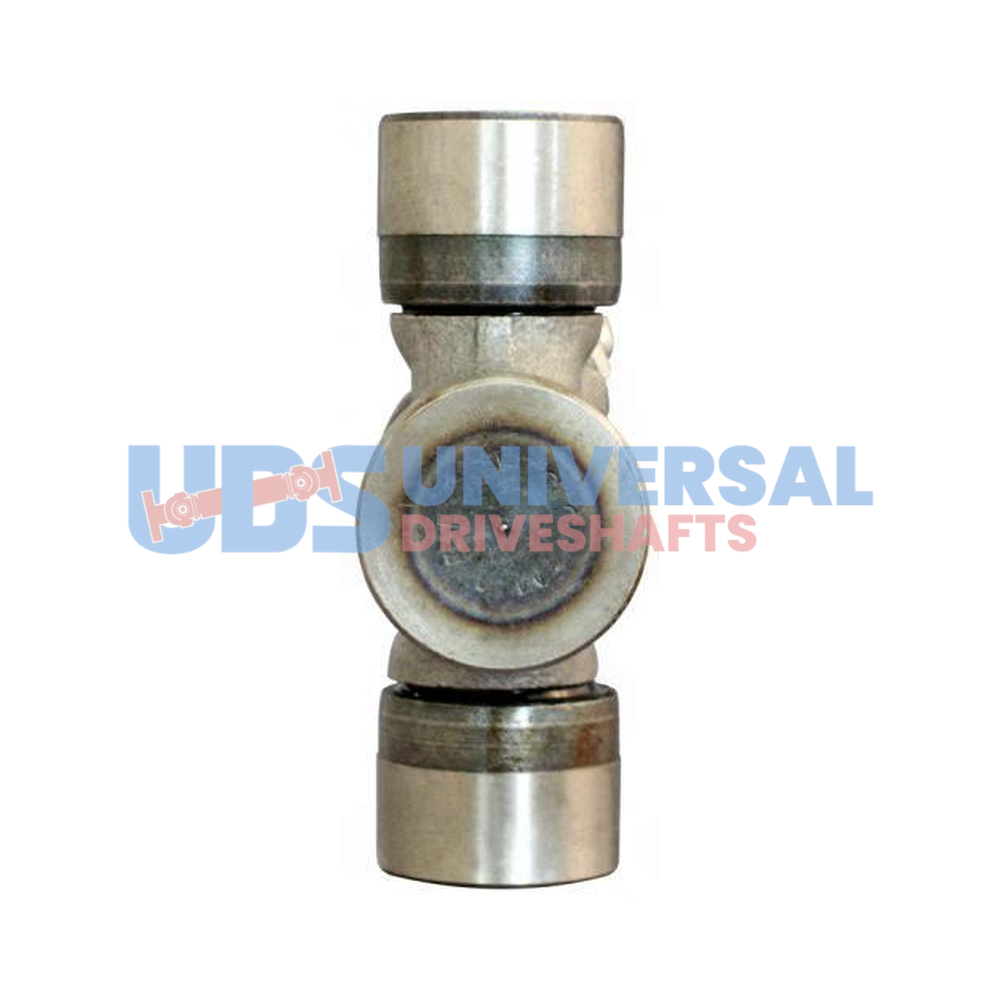

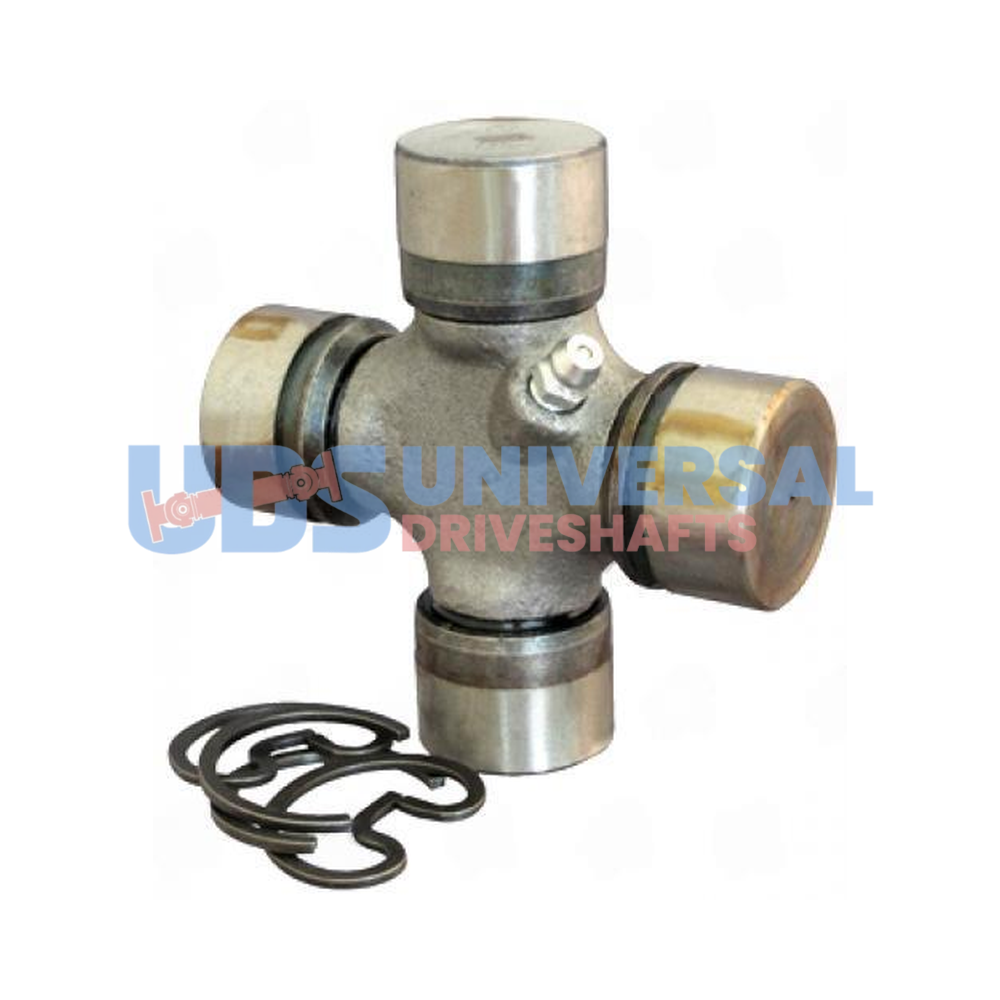

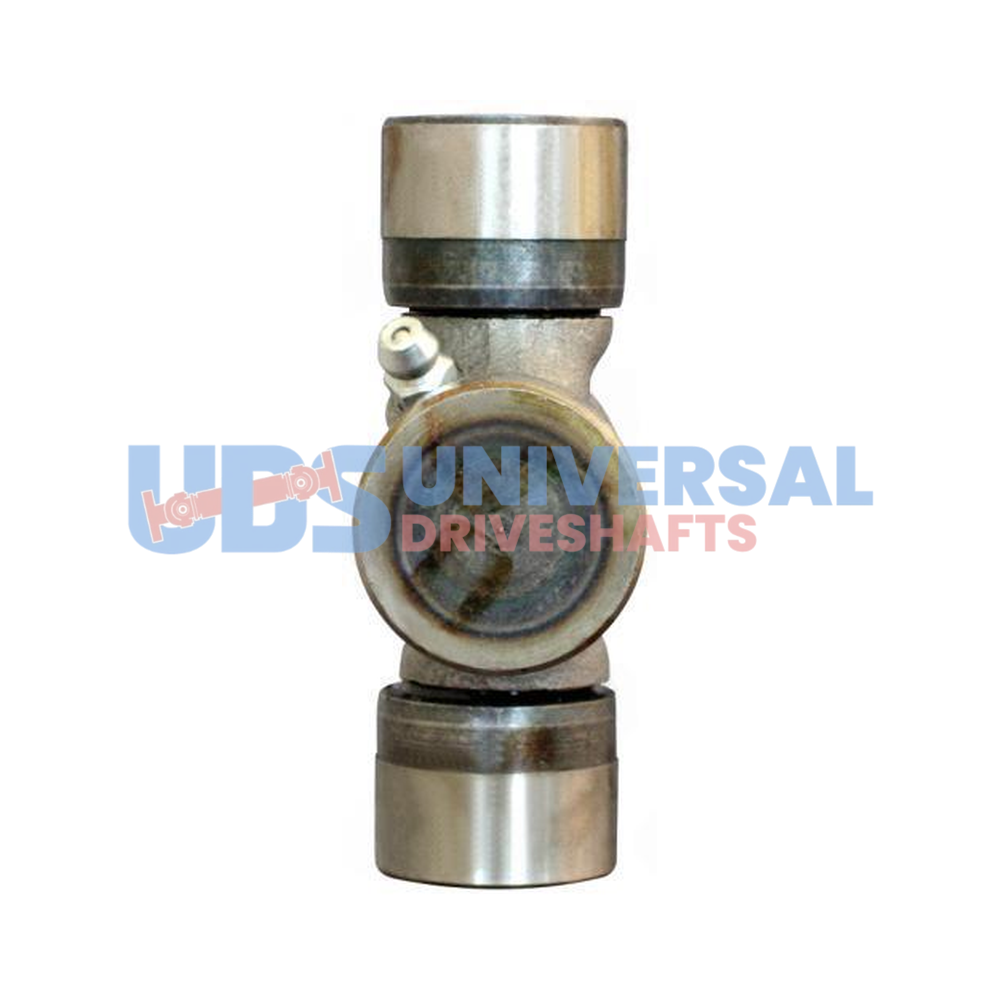

1351-31 Universal Joint Combo Conversion U Joint 1310 x 1510 Toyota UDS Toyota to 1310 Conversion 27X81.7 X 29X52 (OSR/ISR)
$25.92
+50 in stock
11
People watching this product now!
Description
UDS 1310X1510 u-joint. 1.142″ cap, 1.063″ cap (secondary), 2.047″ width, 3.219″ width (secondary). Combination OSR/ISR retention. Greasable.
Full Description
U-joints don't fail suddenly. They telegraph it for weeks: a clunk at low speed, vibration that shows up above 45, rust bleeding from the cap faces. The 1351-31 Universal Joint Combo Conversion U Joint 1310 x 1510 Toyota UDS Toyota to 1310 Conversion 27X81.7 X 29X52 (OSR/ISR) ends that.
Greasable with standard chassis grease — service every 30,000–50,000 miles for best longevity. Use a quality CV/chassis grease, not wheel bearing grease. The 1310X1510 series runs a varies cap diameter across a varies width — built for multi-application use. It's the standard cross on fits multiple series/platforms — verify dimensions.
Cap retention style is COMBO (Combination OSR/ISR). Joint accommodates both outside and inside snap ring yokes — typically used in conversion applications where yoke styles differ side to side. Additional: TOYOTA.
Spec dimensions: 1.142" cap, 1.063" cap (secondary), 2.047" width, 3.219" width (secondary). Cross-reference your original part number or measure the yoke bore before ordering.
Key Features
- Cap diameter: 1.142" cap diameter / 1.063" (secondary) — must match yoke bore exactly for correct seating
- Width: 2.047" overall width / 3.219" (secondary) — verify against yoke ear spacing
- Combination OSR/ISR (COMBO) retention — Match retention type to each yoke individually.
- Greasable — greasable — zerk fitting included
- Series: 1310X1510 — multi-application
- UDS brand — direct-fit replacement dimensioned to OEM spec
- Note: TOYOTA
Specifications
- SKU: 1351-31U
- Reference: 1351-31
- Brand: UDS
- Series: 1310X1510
- Cap Diameter: 1.142" / 1.063"
- Width: 2.047" / 3.219"
- Style: Combination OSR/ISR (COMBO)
- Greasable: Greasable
- Notes: TOYOTA
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
1.142 |
| Cap dia 2 |
1.063 |
| Lube |
Y |
| Notes |
TOYOTA |
| Partn number |
1351-31 |
| Series |
1310X1510 |
| Style |
COMBO |
| Width 1 |
2.047 |
| Width 2 |
3.219 |
