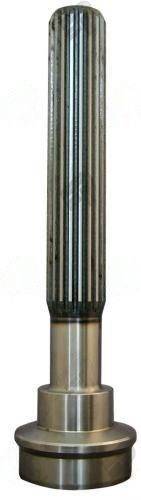

1340-20L – Stub & Midship Shaft – 20 X 1.310 Splines – Butt Dia 2.435″ – Tube Dia Wall 2.560×0.065
$115.20
Description
The 1340-20L Stub & Midship Shaft is engineered to deliver reliable torque transmission in Toyota vehicles. With a spline count of 20 X 1.310, this component ensures a precise fit and optimal performance. The 2.435-inch butt diameter is critical for seating into the transmission output, providing a secure connection that minimizes the risk of failure under load.
Measuring 6.500 inches in spline length, the 1340-20L is designed to accommodate the specific requirements of your driveline setup. The tube diameter wall of 2.560×0.065 contributes to the overall strength and rigidity of the shaft, allowing it to handle the torque demands of high-performance applications while maintaining critical speed limits.
Installation is straightforward, but attention to detail is essential. Here are some key points to consider:
- Verify phasing marks to ensure proper alignment.
- Check runout to avoid vibrations during operation.
- Torque bolts to manufacturer specifications for a secure fit.
- Balance the assembly if any vibrations are detected.
Note that the 1340-20L is sold exclusively in kit 1343-20L, making it a perfect choice for those looking to replace or upgrade their driveshaft components in Toyota models. Trust the 1340-20L for your driveline needs, and experience the difference in performance and reliability.
| Butt dia | 2.435 |
|---|---|
| End to weld | 9.375 |
| Notes | Toyota, Sold only in kit 1343-20L |
| Partn number | 1340-20L |
| Remaining stock | <10 |
| Splines count dia | 20 X 1.310 |
| Splines length | 6.500 |
| Tube dia | 2.560 |
| Tube wall | 0.065" |
| Style | Slip |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Remaining stock >10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Remaining stock <10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Remaining stock <10 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Remaining stock >10 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

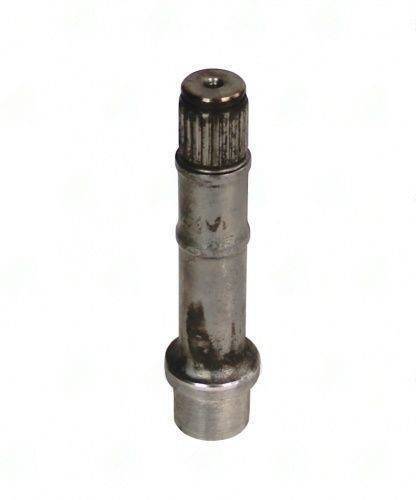

 | Bearing dia 1.181 Butt dia 1.000 End to weld 4.500 Notes Used with 1452-8601 CVJ Kit Partn number 1442-125 Remaining stock <10 Splines count dia 20 X 0.853 Splines length 739 Tube dia 1.250 Tube wall 0.120 Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
