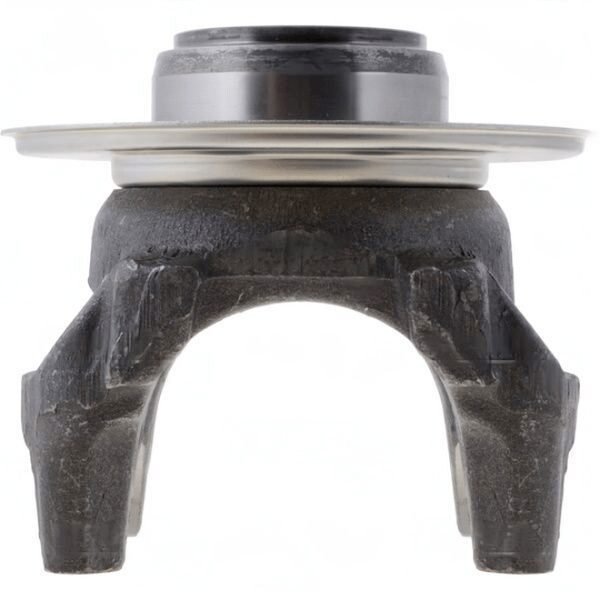

131446KS – End Yoke – SPL250 Series – 2.544″ Splines Dia – 49 Spline
$408.29
1 in stock
Description
When you’re about to install the 131446KS End Yoke, the first step is to verify the spline count and diameter. This yoke is built with 49 splines measuring 2.544″ in diameter, specifically tailored for SPL250 applications. The hub diameter is 3.819″, and the distance from the center of the joint to the end is 6.200″. These dimensions are crucial for ensuring a proper fit and function.
One common mistake during installation is mismatching spline counts. Always check that the yoke aligns correctly with the opposite yoke to maintain proper phasing. This alignment is essential for reducing vibrations and ensuring smooth operation. If the yoke is not phased correctly, it can lead to premature wear or even failure in the driveline.
Here are some key installation tips:
- Double-check spline engagement depth before sliding the yoke on.
- Ensure the hub diameter matches the companion flange or tubing.
- Use a torque wrench to tighten bolts to the specified torque settings.
- Inspect the mating components for wear or damage before installation.
Remember, the 131446KS End Yoke is designed to handle the demands of your driveline system. Proper installation and attention to detail will ensure it performs reliably for years to come.
| Cj to end |
6.200" |
|---|---|
| Hub dia |
3.819 |
| Partn number |
131446KS |
| Series |
SPL250 |
| Splines count |
49 |
| Splines dia |
2.544 |
| Style |
BS |
| Through hole |
2.672 |
