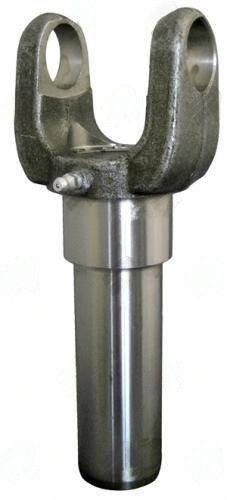

1303-20 – Slip Yoke – 1.310″ Splines Dia – 20 Splines – Center U Joint To End 7.500
$78.66
27 in stock
Description
1303-20 is a Slip Yoke that connects your driveshaft to the transmission or transfer case, ensuring smooth power transfer. This specific configuration, part of the 1351-20 Series, features a spline diameter of 1.310 inches and includes 20 splines. The length from the center of the universal joint to the end measures 7.500 inches, making it a critical component for proper driveline function.
One key aspect of the 1303-20 is its compatibility. It does not fit all Toyota OEM 20 spline stubs, which is crucial to note for any technician or builder. Using a slip yoke that doesn’t match your application can lead to poor engagement, excessive wear, or even failure of the driveline system. Always verify compatibility before installation.
- Key Specs:
- 1.310″ spline diameter
- 20 splines
- Center U Joint to End: 7.500″
- Does not fit all Toyota OEM 20 spline stubs
When installing the 1303-20, ensure proper spline engagement depth and check the phasing with the opposite yoke. Never force the spline entry, as this can damage both the yoke and the mating component. This slip yoke is designed to handle axial movement during suspension travel, making it a reliable choice for your driveline needs.
| Center u joint to end | 7.500 |
|---|---|
| Notes | Does not fit all Toyota OEM 20 spline stubs. Toyota truck |
| Partn number | 1303-20 |
| Remaining stock | >10 |
| Series | 1351-20 |
| Splines count | 20 |
| Splines dia | 1.310 |
