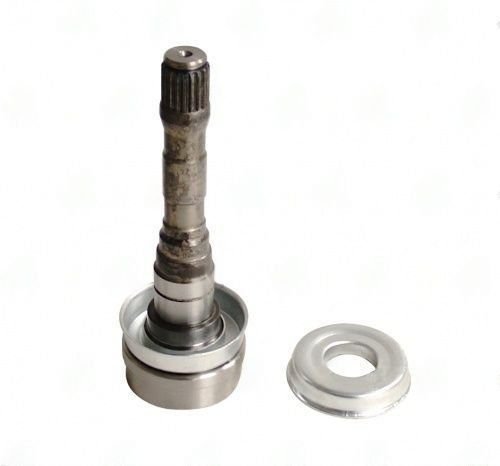

1254-683 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.344″ – End To Weld 6.625
$89.09
Description
1254-683 is a critical component in your driveline system, specifically designed to ensure efficient torque transmission from the transmission to the differential. If you are experiencing vibrations that seem to correlate with speed, this Stub & Midship Shaft may be the solution. A worn or damaged shaft can lead to excessive play in the U-joint, causing vibrations that can be felt throughout the vehicle. This part features a Bearing Diameter of 1.181″ and a Butt Diameter of 2.344″, which are essential for maintaining proper alignment and function.
With a length of 775″ for the splines and a Tube Diameter Wall of 2.500X0.083, the 1254-683 is built to handle the demands of high-performance applications. If you notice a 2x-per-revolution vibration that disappears in neutral, it’s worth checking the condition of this shaft. The 19 X 0.850 splines ensure a secure fit, preventing slippage and maintaining torque integrity.
- Verify the spline count and diameter match your transmission output.
- Check the end-to-weld measurement of 6.625″ for proper fitment.
- Always use with 2252-682 for optimal performance.
- Inspect for runout and balance to eliminate vibrations.
Replacing a worn Stub & Midship Shaft with the 1254-683 restores the driveline’s integrity, ensuring smooth operation and extending the life of your drivetrain components. Don’t let a failing shaft compromise your vehicle’s performance.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.344 |
| End to weld |
6.625 |
| Notes |
use it with: 2252-682 |
| Partn number |
1254-683 |
| Remaining stock |
<10 |
| Splines count dia |
19 X 0.850 |
| Splines length |
775 |
| Tube dia |
2.500 |
| Tube wall |
0.083" |
| Style |
CVJ |
