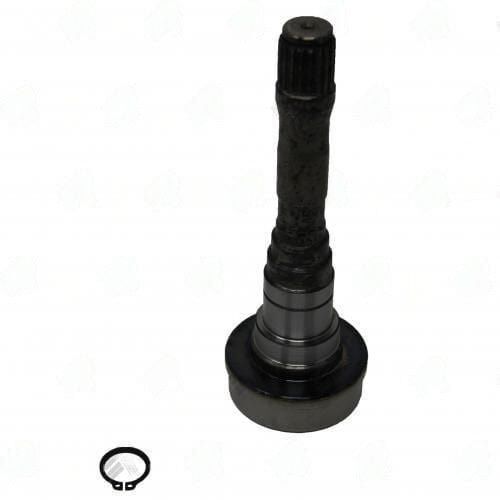

1254-681 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.375″ – End To Weld 6.625
$89.09
Description
When you’re working with the 1254-681 Stub & Midship Shaft, it’s crucial to ensure a precise fit for optimal performance in your drivetrain. This component features a Bearing Dia of 1.181″ and a Butt Dia of 2.375″, making it robust enough for demanding applications. The End To Weld measures 6.625″, which is essential for proper alignment during installation.
Before you begin, check the spline count; this shaft has 19 X 0.850 Splines with a Splines Length of 775″. It’s easy to overlook the spline compatibility, so double-check that it matches your transmission output or transfer case. The Tube Dia Wall of 2.500X0.065 contributes to the overall strength and critical speed limits of the shaft.
One important note: this stub also has a snap ring groove at 16mm to retain the bearing. Make sure to use it with the compatible part, 2252-682, to ensure everything fits together seamlessly.
- Verify spline count and diameter before installation.
- Check the snap ring groove to ensure proper bearing retention.
- Torque bolts to the manufacturer’s specifications for safety.
- Balance the assembly if you experience any vibrations post-installation.
By paying attention to these details, you can avoid common pitfalls and ensure that the 1254-681 Stub & Midship Shaft operates smoothly in your application.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.375 |
| End to weld |
6.625 |
| Notes |
This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 |
| Partn number |
1254-681 |
| Remaining stock |
>10 |
| Splines count dia |
19 X 0.850 |
| Splines length |
775 |
| Tube dia |
2.500 |
| Style |
CVJ |
| Tube wall |
0.065" |
