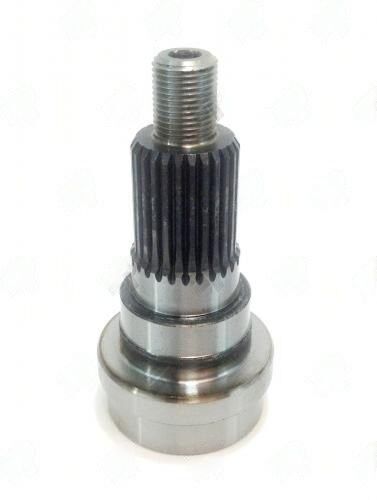

1253-262 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.875″ – End To Weld 2.875
$63.26
12 People watching this product now!
Description
The 1253-262 Stub & Midship Shaft features a 1.181″ Bearing Dia and 1.875″ Butt Dia for reliable driveline performance.
Full Description
1253-262 is a Stub & Midship Shaft that plays a crucial role in transmitting torque from the transmission to the differential. This component is engineered with a Bearing Diameter of 1.181" and a Butt Diameter of 1.875", providing a robust connection that can handle high-torque applications. The End to Weld length of 2.875" ensures proper alignment, which is vital for maintaining driveline integrity.
In vehicles that utilize this shaft, such as those compatible with the 1204-261, the precision of the 26 x 1.115 splines is essential for a secure fit. The splines have a length of 1.180", which helps maintain the correct phasing and minimizes the risk of vibration. A tube diameter of 2.000" and a wall thickness of 0.065" contribute to the overall strength and durability of the shaft.
When installing the 1253-262, it’s important to:
- Verify spline count and ensure compatibility with the transmission output.
- Check for proper phasing marks to avoid vibration issues.
- Torque bolts to the manufacturer’s specifications for a secure fit.
- Balance the assembly if any vibrations are detected during operation.
This Stub & Midship Shaft is designed for fixed applications, making it a reliable choice for performance builders and fleet technicians alike. The 1253-262 is not just a part; it’s a critical component that ensures your driveline operates smoothly and efficiently.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.875 |
| End to weld | 2.875 |
| Notes | USE WITH: 1204-261 , Uses 858018 nut |
| Partn number | 1253-262 |
| Splines count dia | 26 x 1.115 |
| Splines length | 1.180 |
| Tube dia | 2.000 |
| Tube wall | 0.065" |
| Style | FIXED |
