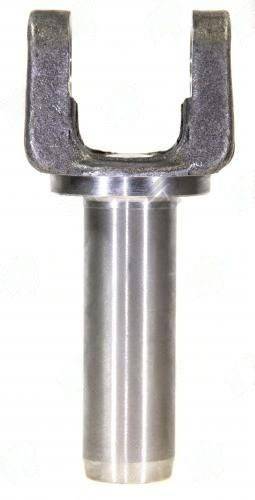

1203-26S – Transmission Yokes – 1251 Series – 24/26 X 1.115 Splines – 1.375″ Hub Dia

The 1203-26S Transmission Yoke is engineered specifically for Nissan applications, featuring a 24/26 X 1.115 spline design that ensures a precise fit and reliable performance. The major spline diameter of 1.115 inches is critical as it determines the yoke’s compatibility with the mating components in the driveline. This dimension directly affects how well the yoke engages with the transmission or transfer case, ensuring smooth power transfer and minimizing wear.

With a hub diameter of 1.375 inches, the 1203-26S provides a solid base for connection, allowing for effective torque transmission. The counter bore diameter of 1.125 inches is also essential, as it accommodates the necessary components while maintaining structural integrity during operation. Measuring 6.000 inches from the center U-joint to the end of the spline, this yoke allows for proper alignment and phasing, which is crucial for reducing vibrations and extending the lifespan of the driveline.

• Check spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke to prevent vibrations.
• Verify compatibility with Nissan applications for optimal performance.

In summary, the 1203-26S Transmission Yoke is a vital component for Nissan vehicles, designed to meet the specific demands of the 1251 Series. Its precise dimensions and robust construction make it a reliable choice for any driveline repair or upgrade.
