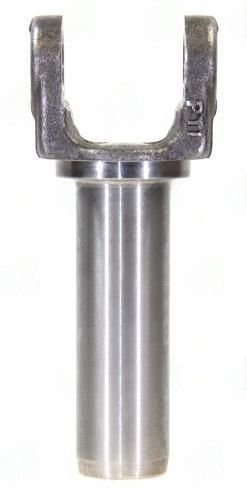

When you’re ready to install the 1203-24 Transmission Yoke, start by confirming the spline count. This yoke features a 22/24 X 0.995 spline configuration, which is common in Nissan and Subaru vehicles. Ensuring that the spline count matches your transmission is crucial; a mismatch can lead to serious driveline issues.
Next, check the hub diameter, which measures 1.375 inches. This dimension is vital for proper engagement with your driveshaft. The counter bore diameter of 1.038 inches also plays a role in fitment, so make sure it aligns with your existing components.
The center U-joint to end measurement of 5.875 inches is another critical spec to verify. This length ensures that the yoke fits correctly within the driveline setup. Always double-check these dimensions before installation to avoid any unnecessary complications.
- Verify spline count: 22/24 X 0.995
- Check hub diameter: 1.375 inches
- Measure counter bore diameter: 1.038 inches
- Confirm center U-joint to end length: 5.875 inches
- Ensure compatibility with Nissan and Subaru models
Remember, proper installation is key. Never force the spline entry; instead, align it carefully to avoid damaging the yoke or transmission. The 1203-24 is designed to handle the demands of both automatic and manual applications, making it a versatile choice for your driveline needs.
