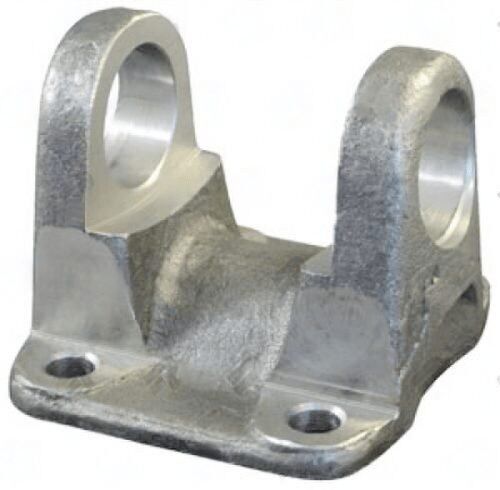

1202-39 – Flange Yokes – 1251 Series – Bolt Circle Dia 2.750″ – Pilot Dia 2.245-M

The 1202-39 Flange Yoke is a 1251 series component designed for Nissan/Subaru applications with a snap ring design. It features a male pilot diameter of 2.245 inches and a bolt circle diameter of 2.750 inches. The yoke includes four bolt holes, each with a diameter of 0.332 inches. The universal joint retaining width is 1.734 inches, and the bearing diameter is 0.985 inches. The flange diameter is 3.560 inches, with a horizontal distance between holes of 1.768 inches and a vertical distance of 2.107 inches. The distance from the centerline of the joint to the flange face is 1.575 inches.
