1202-29 – Flange Yokes – 1251 Series – Bolt Circle Dia 2.980″ – Pilot Dia 1.968-M

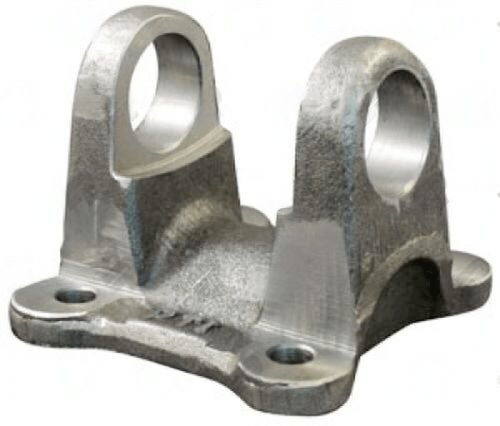

1202-29 is a Flange Yoke that belongs to the 1251 Series, specifically engineered for applications requiring precise alignment and robust connection between the driveshaft and the transmission or differential. This yoke features a bolt circle diameter of 2.980 inches, which ensures compatibility with standard mounting configurations, while the pilot diameter of 1.968 inches allows for a snug fit into the mating component.

The design incorporates four bolt holes, each with a diameter of 0.325 inches, facilitating secure attachment and minimizing the risk of loosening under load. The distance from the centerline to the flange face, measured at 1.750 inches, is critical for maintaining proper alignment and ensuring optimal performance during operation. This yoke is classified as Light Duty (LD), making it suitable for applications where weight savings are essential without sacrificing strength.

• Series: 1251
• Bolt Circle Diameter: 2.980 inches
• Pilot Diameter: 1.968-M
• Bolt Hole Diameter: 0.325 inches
• Distance from Centerline to Flange Face: 1.750 inches

When installing the 1202-29, ensure that the spline engagement is correct and that the yoke is phased properly with the opposite yoke. This attention to detail will help prevent premature wear and potential failure, ensuring a reliable driveline connection.
