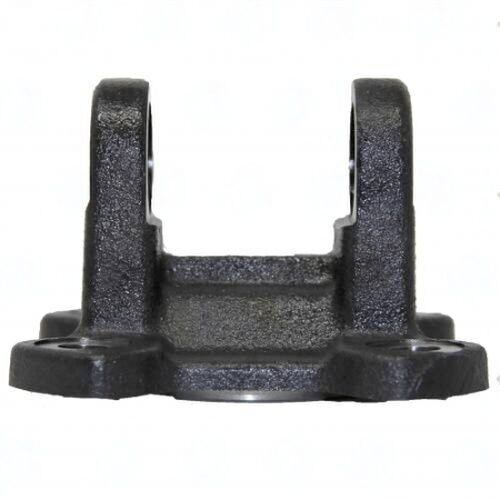

1202-255 – Flange Yokes – 1251 Series – Bolt Circle Dia 3.750″ – Pilot Dia 2.559-M

1202-255 is a Flange Yoke that plays a crucial role in connecting your driveshaft to the transmission or differential. This component adheres to the 1251 Series specifications, ensuring compatibility with various driveline setups. With a bolt circle diameter of 3.750 inches and a pilot diameter of 2.559 inches, this yoke is designed for precise fitment and reliable performance.

When diagnosing driveline issues, a worn or damaged yoke can lead to vibrations, misalignment, or even failure during operation. If you notice a clunking sound or excessive play in the driveline, it’s essential to inspect the yoke for wear. Symptoms like these often indicate that the yoke is no longer providing the necessary support for the driveshaft. The 1202-255 Flange Yoke, with its four bolt holes (0.406 inches each) arranged in a square pattern, is engineered to restore proper function and eliminate these issues.

Key specifications include:

• 1251 Series compatibility
• Bolt Circle Dia: 3.750 inches
• Pilot Dia: 2.559 inches
• Cj To Flat: 1.750 inches
• Bolt Holes: 4

Replacing a faulty yoke with the 1202-255 ensures that your driveline operates smoothly and efficiently, preventing further damage to connected components. Always check spline engagement and phasing during installation to maintain optimal performance.
