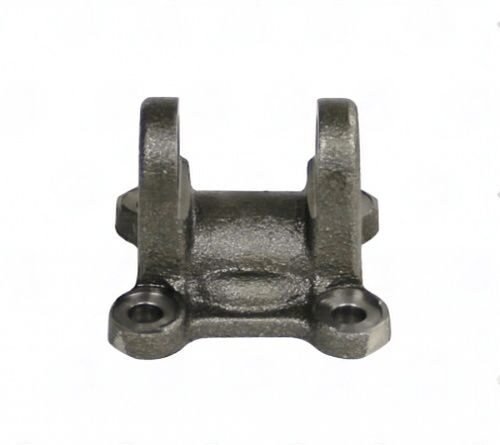

1202-196 – Flange Yokes – 1251 Series – Bolt Circle Dia 3.550″ – Bolt Hole Dia 0.425

1202-196 is a Flange Yoke that plays a crucial role in the 1251 Series, designed for effective torque transfer and reliable driveshaft connections. This yoke features a bolt circle diameter of 3.550 inches, which provides a robust interface for mounting to companion flanges. The four bolt holes, each with a diameter of 0.425 inches, ensure secure fastening and alignment, critical for maintaining driveline integrity under load. The male pilot diameter of 1.968 inches allows for precise engagement with the mating components, ensuring that the yoke fits snugly and minimizes play. This fitment is essential for reducing vibration and wear, which can lead to premature failure. With a centerline to flange face distance of 1.625 inches, the 1202-196 is designed to accommodate various applications, making it a versatile choice for both performance builds and standard replacements. When installing the 1202-196, it’s important to:

• Check spline engagement depth to ensure proper fit.
• Verify phasing with the opposite yoke to prevent driveline vibrations.
• Use appropriate torque specifications for the bolt fasteners.

This yoke is engineered to handle the demands of high-torque applications while maintaining a lightweight profile, making it an ideal choice for performance enthusiasts and fleet technicians alike. The 1202-196 Flange Yoke is a dependable component that meets the rigorous standards of the 1251 Series.
