1182-242 – Yoke Shafts – 9951-22 Series – 972″ Splines Dia – 24 Spline
$88.00
10 in stock
Description

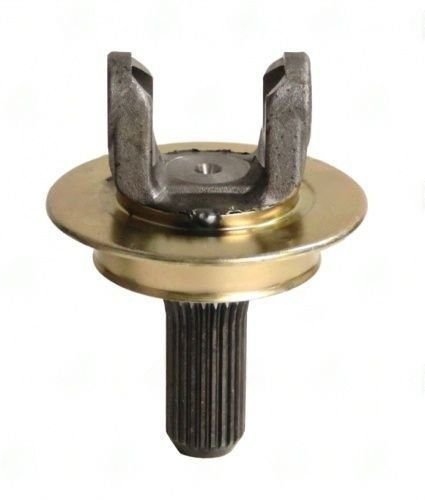

The 1182-242 Yoke Shaft is a critical component for Infiniti front shafts, designed specifically to fit the 9951-22 series. With 24 splines and a major spline diameter of 0.972 inches, this yoke shaft ensures a proper fit and reliable operation. The spline length measures 1.575 inches, while the centerline to end distance is 4.461 inches, making it essential for maintaining the correct phasing and alignment in your driveline.
One of the key differentiators of the 1182-242 yoke shaft is its specific spline configuration. Using a yoke shaft that does not match the 9951-22 series can lead to improper engagement, which may cause vibrations or even failure during operation. This yoke shaft is designed for light-duty applications, classified under Class LD, ensuring it meets the demands of everyday driving conditions.
- Key Specs:
- 24 Splines
- 0.972″ Spline Diameter
- Spline Length: 1.575″
- Centerline to End: 4.461″
When installing the 1182-242, always check the spline engagement depth and ensure proper phasing with the opposite yoke. This attention to detail will help prevent premature wear and ensure optimal performance of your driveline system. The 1182-242 is not just another yoke shaft; it’s a vital link in your vehicle’s drivetrain that deserves careful consideration.
| Boot cap part | N/A |
|---|---|
| C l to end | 4.461 |
| Notes | Infiniti Front Shafts |
| Partn number | 1182-242 |
| Remaining stock | 10+ |
| Series | 9951-22 |
| Splines count | 24 |
| Splines dia | 972 |
| Splines length | 1.575 |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Yoke Shafts (53) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | C l to end 3.656 Notes Dana Spicer Partn number 1-82-21 Remaining stock 10+ Series 1100 Splines count 16 Splines dia 1.060 Splines length 1.688 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | C l to end 5.562 Notes Dana Spicer Partn number 10-82-21 Remaining stock 10+ Series 1000 Splines count 16 Splines dia 1.250" Splines length 1.625 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part N/A C l to end 5.130 Notes Infiniti Front Shafts, Staked joints Partn number 1182-241 Remaining stock 10+ Series 9951-22 Splines count 24 Splines dia 972 Splines length 1.693 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part 91-30-2-132M C l to end 11.811 Notes Dana Spicer Partn number 140-82-21X Remaining stock 10+ Series SPL140 Splines count 30 Splines dia 3.071 Splines length 8.661 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part N/A C l to end 6.385 Notes Volvo Partn number 1482-62 Remaining stock 10+ Series 1451-22 Splines count 16 Splines dia 1.063 Splines length 3.000 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part 100-30-2-141M C l to end 13.457 Notes Dana Spicer Partn number 170-82-101X Remaining stock 10+ Series SPL170 Splines count 34 Splines dia 3.464 Splines length 9.744 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Boot cap part 100-30-2-115M, 170-82-131X C l to end 12.441 Notes Dana Spicer Partn number 170-82-121XS Remaining stock 10+ Series SPL170 Splines count 34 Splines dia 3.425 Splines length 8.720 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part 100-30-2-84M C l to end 11.062 Notes Dana Spicer Partn number 170-82-191X Remaining stock 10+ Series SPL170 Splines count 34 Splines dia 3.464 Splines length 7.500 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Boot cap part 109-30-2-94M C l to end 11.811 Partn number 170-82-21X Remaining stock 10+ Series SPL170 Splines count 38 Splines dia 3.858 Splines length 9.193 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

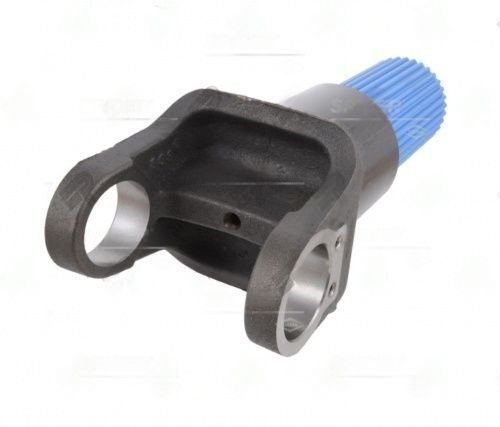

 | Boot cap part 100-30-2-156M C l to end 13.850 Partn number 170-82-71X Remaining stock 10+ Series SPL170 Splines count 34 Splines dia 3.464 Splines length 10.335 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
