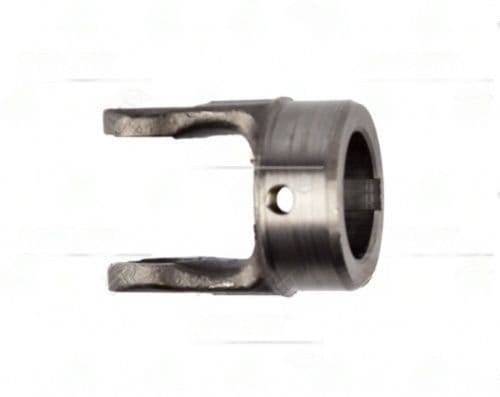

10-4-22 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 750

10-4-22 is your reliable choice for an End Yoke from the 1000 Series. This component connects your driveshaft to the transmission or differential, ensuring smooth power transfer. Before installation, verify the hub diameter of 1.62 inches and the square bore diameter of 0.750 inches. These dimensions are critical for a secure fit.

When preparing to install, check the centerline to the end of the hub, which measures 2.50 inches. This measurement is essential for proper alignment with your driveline components. The through hole of 1.225 inches allows for versatile mounting options, accommodating various setups.

• Always confirm the spline engagement depth before sliding the yoke onto the shaft.
• Ensure the yoke is phased correctly with the opposite yoke to avoid vibrations.
• Use a torque wrench to tighten fasteners to the manufacturer’s specifications for a secure connection.

Common mistakes include forcing the spline entry, which can damage the yoke or the mating component. Instead, ensure everything aligns smoothly. The 10-4-22 End Yoke is designed to handle the demands of your driveline, making it a dependable choice for both performance and fleet applications. Remember, proper installation is key to longevity and performance, so take your time and double-check your work. With 10-4-22, you’re set for reliable operation.
