10-4-193 End Yoke – Round Bore 1000 series, Bore : 1.250 With Keyway: 0.312 , Hub: 2.000

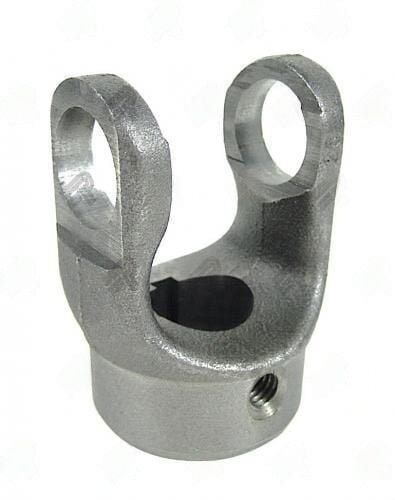

10-4-193 is a round bore end yoke from the 1000 Series, specifically designed for light-duty applications. This yoke connects the driveshaft to the transmission or differential, ensuring smooth power transfer. With a bore diameter of 1.250 inches, it fits snugly onto the corresponding shaft, while the 2.000-inch hub diameter provides a robust connection point.

One of the key features of the 10-4-193 is its centerline-to-end measurement of 2.50 inches, which is critical for proper alignment in your driveline setup. The inclusion of a 0.312-inch keyway allows for secure attachment, preventing slippage during operation. Additionally, the through hole diameter of 1.20 inches accommodates various mounting configurations.

When installing the 10-4-193, it’s essential to:

• Check spline engagement depth to ensure a proper fit.
• Verify phasing with the opposite yoke to maintain driveline balance.
• Never force spline entry; this can lead to damage.

This yoke is ideal for applications where axial movement is required, making it a versatile choice for various light-duty vehicles. Remember, proper installation and alignment are key to maximizing the lifespan of your driveline components. The 10-4-193 delivers reliable performance, making it a solid choice for your next project.
