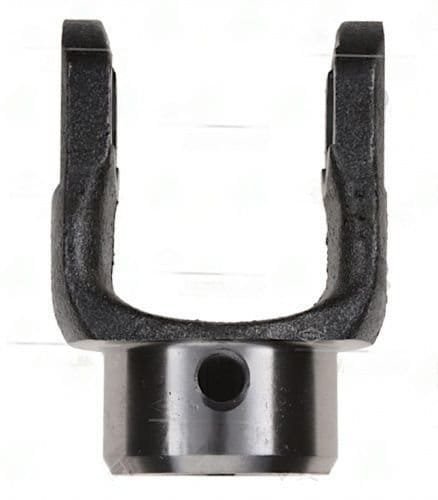

10-4-13 is an End Yoke from the 1000 Series, specifically designed to connect driveshafts in light-duty applications. This yoke features a hub diameter of 1.62 inches and a bore diameter of 0.750 inches, providing a robust interface for reliable torque transfer. The centerline-to-end measurement is 2.50 inches, which allows for proper alignment and fitment in various setups.
The round bore type ensures smooth engagement with the mating components, while the keyway gap of 0.19 inches guarantees a secure fit during assembly. This is critical for maintaining alignment and preventing slippage under load. The through hole diameter of 1.20 inches allows for easy installation and access for fasteners, ensuring a straightforward assembly process.
When installing the 10-4-13, it’s important to check the spline engagement depth and ensure proper phasing with the opposite yoke. This will help prevent vibrations and potential failure during operation. The 1000 Series yokes are engineered for applications where weight savings are essential without compromising strength.
- Hub Diameter: 1.62 inches
- Bore Diameter: 0.750 inches
- Centerline-to-End Measurement: 2.50 inches
- Keyway: GAP-0.19
- Through Hole Diameter: 1.20 inches
In summary, the 10-4-13 End Yoke is a well-engineered component that meets the demands of light-duty driveline systems, ensuring reliable performance and ease of installation.
