10-4-0183
$23.37
2 in stock
Description

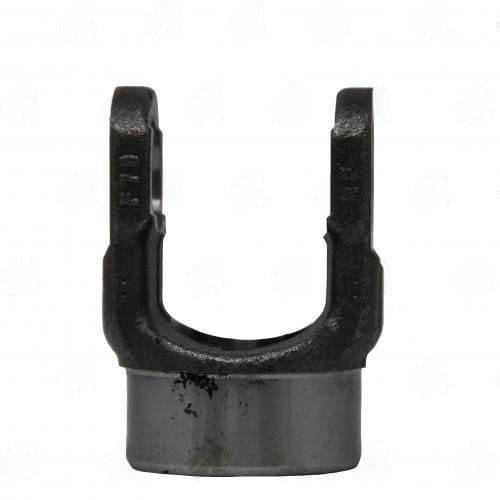

The Spicer 10-4-183 PTO end yoke is engineered for high-performance applications within the 1000 series. This yoke features a round bore design with a bore diameter of 1.250 inches, ensuring a reliable fit for various systems. The hub diameter measures 2.000 inches, providing a robust connection point, while the universal joint bearing diameter of 0.938 inches ensures smooth operation.
Designed with a universal joint retaining width of 1.500 inches, the 10-4-183 effectively accommodates high-angle applications, maintaining integrity under stress. The length through the bore is 1.030 inches, offering optimal alignment and stability. Additionally, the set screw, with a thread size of 0.375 inches, guarantees a secure fastening.
The keyway width of 0.250 inches and its placement at clock position 9 enhance the yoke’s functionality, while the inside snap ring style allows for easy installation and removal. With a centerline of joint to the end of the hub at 2.500 inches and a joint angle of 0.000 degrees, the Spicer 10-4-183 is built to perform in demanding environments, providing reliability and durability where it matters most.
| Bore type | round |
|---|---|
| Cj to end | 2.50 |
| Hub dia | 2.25 |
| Keyway | GAP – 0.25 |
| Partn number | 10-4-0183 |
| Remaining stock | <10 |
| Series | 1000 |
| Through hole | 1.19 |
| Bore dia | 1.250 |
