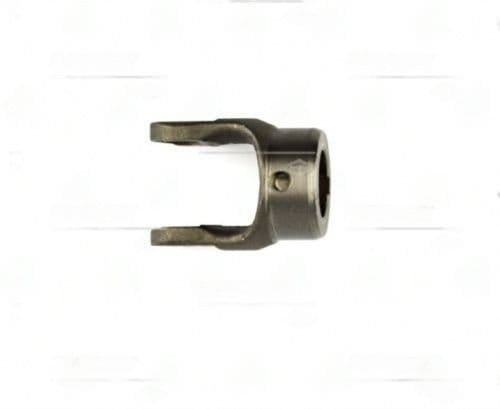

10-4-0153 – End Yoke – 1000 Series – 1.188″ Bore Dia – 2.25″ Hub Dia

10-4-0153 is an essential component in heavy-duty driveline applications, particularly for those utilizing the 1000 Series. This end yoke connects the driveshaft to the transmission or differential, ensuring efficient torque transfer and reliable performance. With a bore diameter of 1.188 inches and a hub diameter of 2.25 inches, it provides a robust connection that can handle the demands of rigorous driving conditions.

One of the standout features of the 10-4-0153 is its centerline measurement of 2.50 inches to the end of the hub, which allows for precise alignment during installation. Additionally, the 1.18-inch through hole offers flexibility for various mounting configurations. The round bore type ensures smooth engagement with the mating components, minimizing wear and enhancing durability.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to prevent vibration.
• Ensure the keyway (GAP-0.31) is properly aligned for torque transfer.
• Do not force spline entry; it should slide in smoothly.
• Inspect the mating components for wear as a system.

In summary, the 10-4-0153 End Yoke is designed to meet the rigorous demands of heavy-duty applications, making it a reliable choice for fleet techs and performance builders alike. Its specifications align perfectly with the needs of those working with 1000 Series driveline setups, ensuring that you can trust this yoke to deliver the performance you need.
