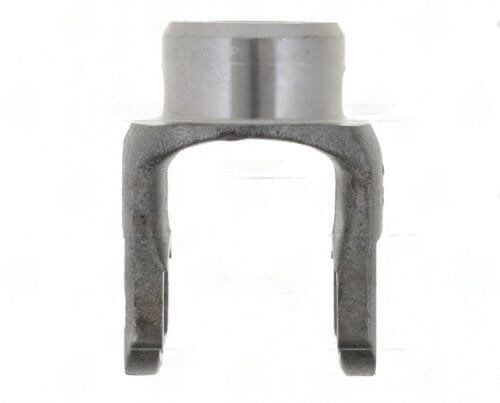

10-4-0133 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 750

When you encounter a driveline vibration or misalignment, the 10-4-0133 End Yoke is often the solution you need. This component is critical for connecting the driveshaft to the transmission or differential, ensuring smooth power transfer. The 10-4-0133 features a 1.62″ hub diameter and a bore diameter of 0.750″, making it compatible with 1000 Series U-joints. If your vehicle is experiencing a vibration at specific speeds, it could be due to improper yoke alignment or wear in the yoke itself.

With a centerline to end measurement of 2.50 inches and a keyway width of GAP-0.19, the 10-4-0133 provides the necessary alignment during installation. The through hole measures 1.20 inches, allowing for secure fastening with an EAR – 0.62 set screw. This ensures that the yoke remains firmly in place, preventing any unwanted movement that could lead to further driveline issues.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to avoid vibrations.
• Ensure the keyway aligns properly for secure fitment.

In summary, the 10-4-0133 End Yoke is an essential component for maintaining the integrity of your driveline system. By ensuring proper installation and alignment, you can prevent costly repairs down the line. Remember, a little attention to detail during installation can save you a lot of headaches later.
