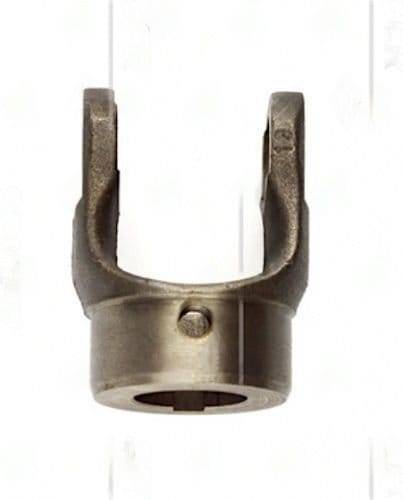

10-4-0113 – End Yoke – 1000 Series – Bore Dia 1.125″ – 2.25″ Hub Dia

10-4-0113 is an End Yoke that plays a crucial role in connecting your driveshaft to the transmission or differential. This 1000 Series yoke features a bore diameter of 1.125 inches, a hub diameter of 2.25 inches, and a centerline-to-end measurement of 2.50 inches. Before installation, ensure you check the spline engagement depth, as improper fit can lead to premature wear or failure.

Common mistakes during installation include overlooking the keyway alignment. This yoke has a GAP-0.31 keyway, which must align properly for effective torque transfer. The through hole diameter of 1.20 inches is designed for secure fastening, so make sure to use the correct size fasteners to avoid stripping or loosening.

• Verify spline count and series compatibility before installation.
• Check that the hub diameter matches your existing components.
• Ensure the keyway aligns correctly to prevent slippage.
• Use appropriate fasteners for the through hole to maintain integrity.
• Inspect mating components to ensure they are in good condition.

With the 10-4-0113 End Yoke, you can trust that your driveline will operate smoothly. This component is engineered for durability and reliability, making it an excellent choice for light-duty applications. Remember, proper installation is key to maximizing performance and longevity.
