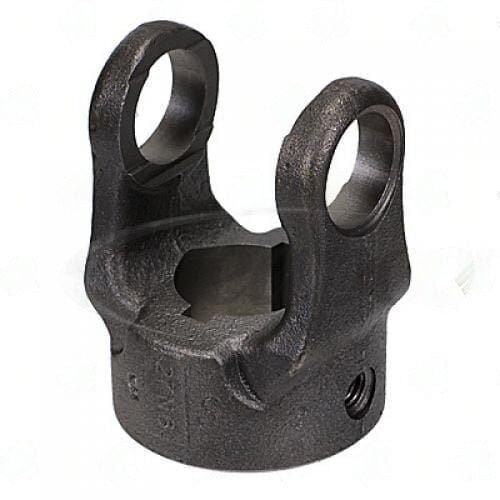

10-1574 – End Yoke – 1000 Series – 1.188″ Bore Dia – 2.25″ Hub Dia

10-1574 is a robust end yoke from the 1000 Series, specifically designed for light-duty applications. This component connects the driveshaft to the transmission or differential, ensuring reliable power transfer. With a bore diameter of 1.188 inches and a hub diameter of 2.25 inches, it fits perfectly with compatible U-joints, maintaining the integrity of your driveline.

One of the key features of the 10-1574 is its centerline-to-end measurement of 2.50 inches, which is crucial for proper alignment and phasing with the opposite yoke. If you mistakenly use a yoke with a different series, such as a 1310 or 1350, you’ll find that the cap diameter and cross width will not match, leading to potential failure or misalignment.

Installation is straightforward, but always check the spline engagement depth to ensure a secure fit. The 10-1574 also includes a keyway with a gap of 0.25 to 0.31 inches, allowing for precise positioning during assembly. The through hole diameter of 1.26 inches accommodates various mounting options, making it versatile for different setups.

• Series: 1000
• Bore Diameter: 1.188 inches
• Hub Diameter: 2.25 inches
• Centerline-to-End: 2.50 inches
• Through Hole Diameter: 1.26 inches

In summary, the 10-1574 End Yoke is a reliable choice for those looking to maintain optimal performance in their driveline systems. Ensure compatibility with your existing components to avoid costly mistakes.
