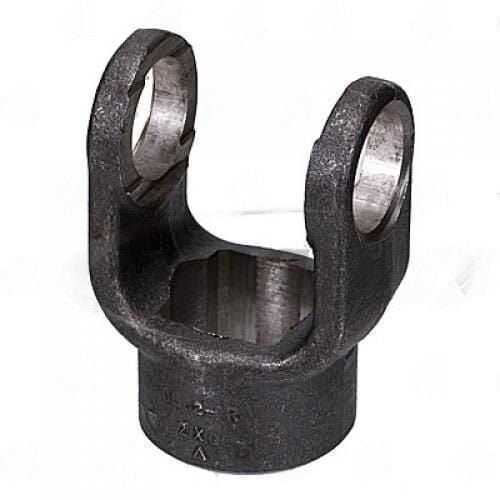

10-1559 – End Yoke – 1000 Series – 1.000×1.125″ Bore Dia – 2.25″ Hub Dia

10-1559 is a rectangular bore end yoke from the 1000 Series, specifically designed for light-duty applications. This component connects the driveshaft to the transmission or differential, ensuring smooth power transfer. With a hub diameter of 2.25 inches and dual bore diameters of 1.000 and 1.125 inches, it offers flexibility for various mounting configurations. The centerline-to-end measurement is 2.50 inches, making it a compact choice for tight spaces.

When installing the 10-1559, ensure that the spline engagement depth is correct and that it is properly phased with the opposite yoke. This yoke features a through hole diameter of 1.22 inches, allowing for easy attachment to companion flanges or tubing. It’s important to note that this yoke does not include a set screw, so be sure to secure it appropriately during installation.

• Hub Diameter: 2.25 inches
• Bore Diameter: 1.000×1.125 inches
• Centerline-to-End Measurement: 2.50 inches
• Through Hole Diameter: 1.22 inches
• Bore Type: Rectangular

In summary, the 10-1559 end yoke is an essential component for any light-duty driveline setup. Its robust design and precise dimensions make it a reliable choice for ensuring optimal performance in various applications.
