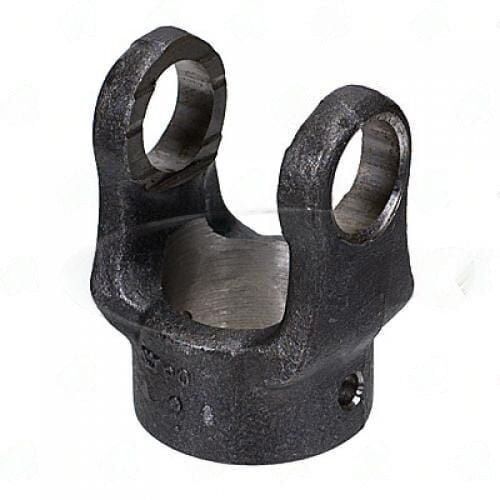

10-1532 – End Yoke – 1000 Series – 1.500″ Bore Dia – 2.00″ Hub Dia

10-1532 is a round bore end yoke from the 1000 Series, specifically designed for light-duty applications. The 1.500-inch bore diameter is critical as it fits precisely into the corresponding components, ensuring a secure and stable connection. This dimension directly influences the yoke’s compatibility with U-joints and other driveline parts, making it essential for proper assembly and function.

The 2.00-inch hub diameter provides a robust interface, allowing for effective torque transfer while minimizing play. With a centerline-to-end measurement of 2.50 inches, this yoke maintains the necessary alignment in the driveline, which is crucial during operation. Additionally, the through hole diameter of 1.26 inches accommodates various mounting configurations, enhancing versatility.

When installing the 10-1532, consider the following:

• Ensure proper spline engagement for optimal performance.
• Verify the alignment with the opposite yoke to prevent vibration.
• Check that the set screw, with a diameter of 0.50 inches, is securely fastened for stability.

In summary, the 10-1532 End Yoke is a vital component for any light-duty driveline system, delivering reliability and performance. Its specific measurements and design make it an excellent choice for those working with 1000 Series applications.
