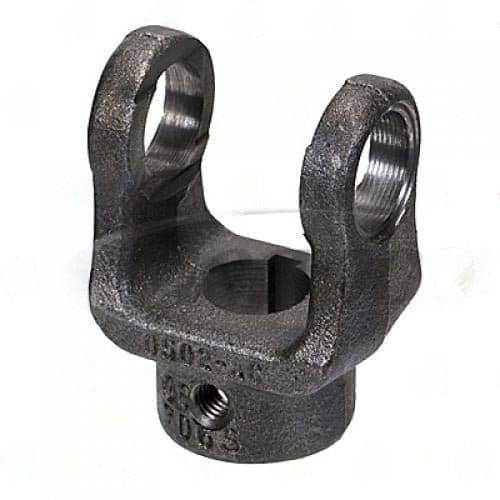

10-0463 – End Yoke – 1000 Series – 1.62″ Hub Dia – Bore Dia 875

When you’re ready to install the 10-0463 End Yoke, ensure you check the specifications carefully. This yoke, part of the 1000 Series, features a hub diameter of 1.62 inches and a bore diameter of 0.875 inches, making it suitable for a variety of light-duty applications. The centerline-to-end length measures 2.50 inches, providing the necessary reach for proper alignment in your driveline setup.

Before installation, verify that the bore type is round and that the keyway gap is set at 0.25 inches. This attention to detail ensures a snug fit and prevents any unwanted movement during operation. The through hole measures 1.24 inches, allowing for easy access to fasteners and ensuring a secure connection.

• Check spline engagement depth before sliding the yoke onto the output shaft.
• Ensure proper phasing with the opposite yoke to avoid vibrations.
• Use a torque wrench to tighten fasteners to the manufacturer’s specifications.
• Inspect the mating components for wear or damage before installation.

Common mistakes include mismatching the yoke with the wrong spline count or failing to check the alignment, which can lead to premature wear or failure. By taking the time to verify these details, you can ensure a successful installation of the 10-0463 End Yoke, maintaining the integrity of your driveline system.
