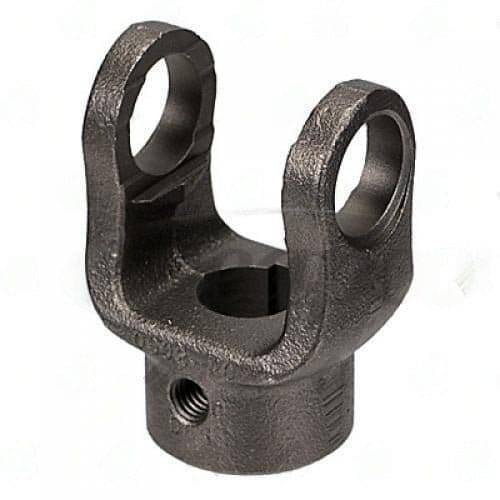

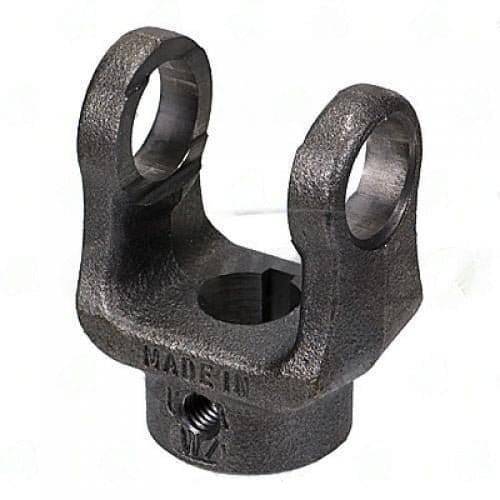

The 10-0433 is a critical component in your driveline system, specifically designed as an end yoke from the 1000 Series. With a hub diameter of 1.62 inches, this yoke connects seamlessly to your transmission or differential, ensuring efficient power transfer. The bore diameter of 0.812 inches is essential for accommodating the specific shaft size, allowing for a snug fit that minimizes play and vibration.
The centerline to end measurement of 2.500 inches is crucial as it determines the yoke’s positioning within the driveline assembly. This measurement ensures that the driveshaft maintains proper alignment, which is vital for reducing wear on U-joints and other components. Additionally, the yoke features a GAP keyway measuring 0.19 inches, which aids in securing the yoke to the shaft, preventing slippage during operation.
Installation of the 10-0433 requires attention to detail. Here are some key points to consider:
- Verify spline engagement depth to ensure proper fit.
- Check phasing with the opposite yoke to prevent vibrations.
- Do not force spline entry; align carefully to avoid damage.
The through hole of 0.99 inches allows for additional fastening options, enhancing the yoke’s versatility. Whether you’re replacing a worn-out part or building a new system, the 10-0433 end yoke is engineered to deliver reliable performance in light-duty applications.
