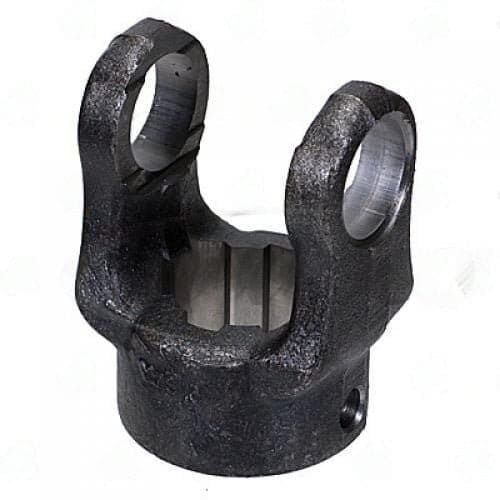

10-0431 is an End Yoke designed for use in 1000 Series applications, connecting driveshafts to components like transmissions or differentials. The yoke features a 2.00″ hub diameter and a splined bore diameter ranging from 1.375 to 6 inches, ensuring a robust fit for various driveline configurations. This design allows for effective torque transfer while accommodating axial movement during suspension travel.
The 2.500″ centerline to end measurement is optimized for applications requiring precise alignment and engagement. The through hole diameter of 2.03″ facilitates easy installation and connection to companion flanges or tubing. When installing the 10-0431, ensure that the spline engagement depth is checked and that phasing with the opposite yoke is verified to prevent driveline vibrations.
- Hub Diameter: 2.00″ for secure fitment
- Bore Diameter: 1.375-6″ for flexibility in applications
- Centerline to End: 2.500″ for optimal alignment
- Through Hole Diameter: 2.03″ for easy installation
- Bore Type: Splined for reliable torque transfer
Engineers selected these dimensions to meet the demands of light-duty applications while ensuring compatibility with existing driveline components. The 10-0431 is a reliable choice for fabricators and fleet technicians looking for a dependable end yoke solution.
