Slip yoke vs weld yoke vs flange yoke: which one you need

Every driveshaft is a tube with a yoke at each end. The yoke type is set by what it bolts or slides onto; the size is set by the u-joint series. Here is how to read both.

By Universal Driveshafts Updated 6 min read

Strip a driveshaft down and it is a tube with a yoke welded to each end, and a u-joint in each yoke connecting it to the vehicle. The yoke types differ in how they attach to the vehicle: a slip yoke slides on a spline, a flange yoke bolts to a flange, an end yoke is nutted onto a pinion or output shaft, and a weld yoke is the half of the pair that lives on the tube. The size of every one of them is set by the u-joint series. Get the type right and the series right and the shaft bolts up.

Where each yoke lives

Follow a typical rear-wheel-drive truck from the transmission back:

  1. Transmission output shaft: externally splined. A slip yoke slides over it and carries the front u-joint. On some vehicles the transmission instead has an end yoke or flange bolted to it and the slip is inside the shaft.
  2. Front of the tube: a weld yoke (tube yoke) welded in, carrying the other half of the front u-joint. On a flange-ended shaft the weld yoke mates to a flange yoke instead of a slip yoke.
  3. Rear of the tube: another weld yoke, or a slip stub on a two-piece.
  4. Pinion: a pinion end yoke (strap, u-bolt or bolted-cap style) or a companion flange that mates to a flange yoke on the shaft.

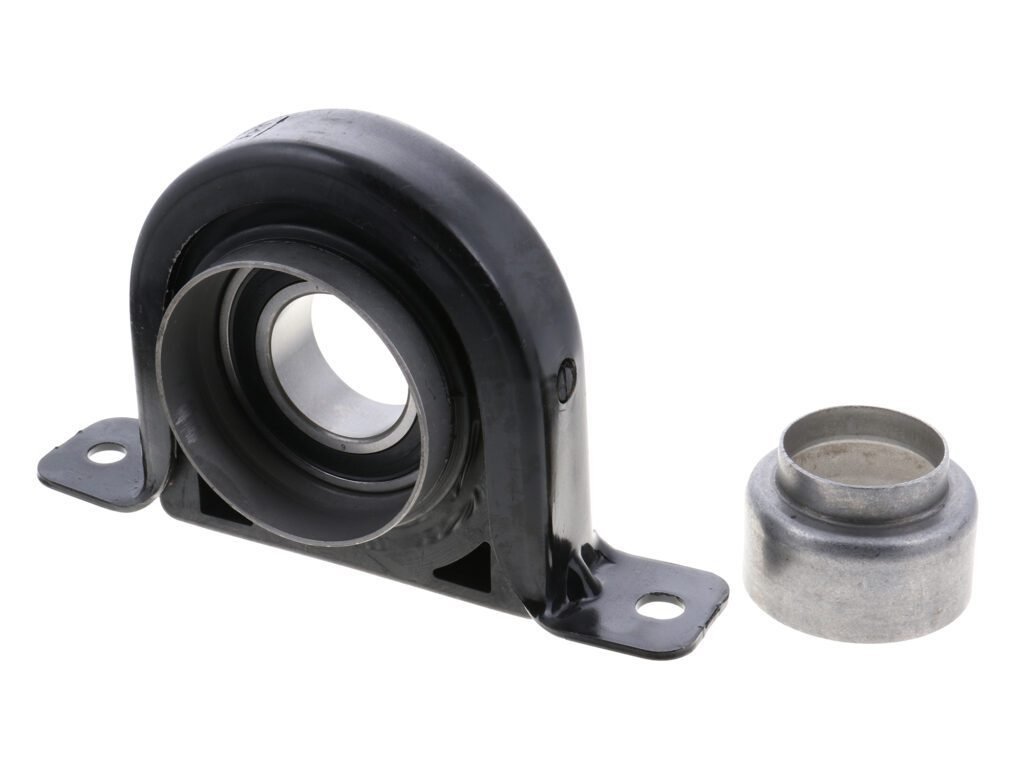

Two-piece shafts add a stub (midship) shaft carrying the center bearing and a slip yoke or splined sleeve on the rear shaft that rides on it. Industrial and PTO shafts replace yokes with keyed hubs, splined sleeves or quick-disconnect PTO yokes, but the logic is identical.

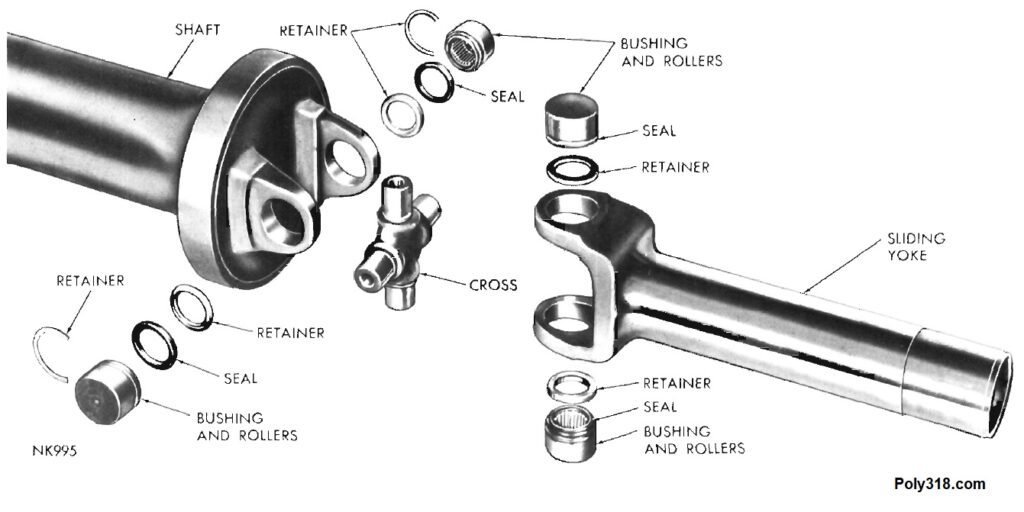

Slip yokes

A slip yoke is a yoke with a long internally splined barrel. It provides the length change the driveline needs as the suspension moves and lets the shaft be removed by sliding it off. Specifying one takes four values:

  • Spline count and major diameter: 1.250 x 16, 1.375 x 16, 1.500 x 16, 1.125 x 27, 1.375 x 32 and so on. This must match the output shaft exactly.
  • U-joint series: 1310, 1330, 1350, 1410, 3R, 7290... The ears are machined for one series.
  • Centerline to end (CL to end): distance from the u-joint cross center to the end of the barrel. Longer barrels give more slip travel and reach outputs that sit deep in a tailhousing. Common values are 5.000, 5.500, 6.000 and 7.375 inches; a 2-3-1421KX is a 1310 series 1.250 x 16 at 5 inches CL to end.
  • Seal and plug: most have a welch plug in the ear end to keep transmission fluid in; some are open-ended for sealed outputs. Dust caps and boots are small parts.

Slip yokes wear two ways: the spline gets rotational play, and the barrel outer surface wears where the tailhousing seal rides, causing a leak. Either means a new yoke. Browse slip yokes by spline and series.

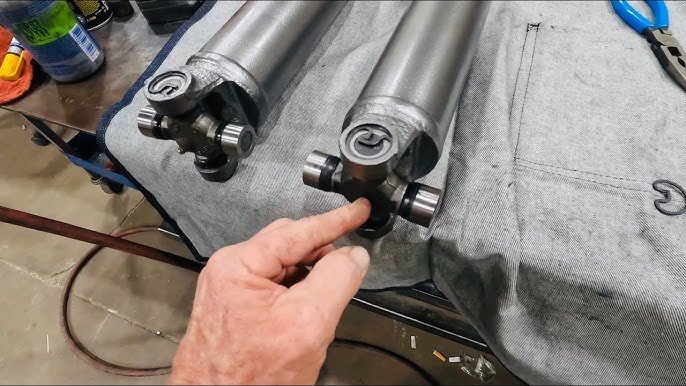

Weld yokes

The weld yoke (tube yoke) is the part of the shaft itself. It has a machined butt diameter that fits inside the tube and a shoulder the tube butts against, which is then welded all around. It is specified by:

  • Tube OD and wall: a yoke is made for one tube size, for example 2.000 x 0.120 or 3.000 x 0.083. The butt diameter equals the tube inside diameter (a 2.000 x 0.120 tube has a 1.760 ID, so 2-28-1757 lists a 1.766 butt).
  • U-joint series, as always.
  • Centerline to weld: cross center to the weld shoulder. This is the number a shop subtracts from your overall measurement when it cuts the tube. The 2-28-417 lists 1.688 CL to weld.

Weld yokes are the cheapest part of a shaft and the one that fails least; they are replaced when the ears are worn oval, when converting a shaft to another series, or when re-tubing. Listings are under weld yokes, filtered by tube size. If you are matching a tube, the tubing guide explains which OD and wall pair with which yoke.

Flange yokes and companion flanges

A flange yoke carries a u-joint on one side and a flat, bolted flange on the other. The vehicle side is a companion flange (on a pinion, transmission, transfer case or industrial gearbox). The two are a matched pair and are specified by the flange pattern:

DimensionHow to measureExample
Bolt circle diameter (BCD)Center to center across two opposite holes; for 3- or 6-hole patterns use the circle through the hole centers3.750 (Ford, Toyota 1350 pattern), 3.500 (Ford 8.8 small pattern)
Hole count and sizeCount; caliper hole diameter; note threaded vs clearance4 x 0.438, 4 x 10 mm, 6 x 12 mm
Pilot diameterCaliper the raised ring (male) or the recess (female)2.750 male (70 mm), 57 mm male (Nissan/Subaru)
Face to joint centerFlange face to cross centerSets how much shaft length the yoke uses
SeriesCap diameter of the joint1310, 1350, 1410

The 2-2-479 reads exactly this way: 1310 series, 4 x 0.438 holes on a 3.750 BCD, 2.750 male pilot. Flange shafts dominate imports, late-model trucks and industrial drives because the flange carries high torque and lets the shaft be removed without disturbing the pinion. They have no slip travel of their own, so a flange-to-flange shaft either has a splined slip assembly in the tube or is used where length does not change. The flange yoke category is our largest, 243 patterns and counting, alongside companion flanges. CV (double cardan) flange yokes for high-angle front shafts are listed separately.

End yokes and transmission yokes

An end yoke has a splined bore and is nutted onto a shaft: the pinion of the axle (pinion yoke), the output of a transfer case, or the output of a transmission that does not use a slip yoke. It carries the fixed half of the u-joint. Specification is spline count and diameter, u-joint series, and the retention style: strap (two small straps and four bolts), u-bolt (two u-bolts with nuts), or bolted caps (caps with lugs that bolt to the yoke, common on medium duty). The strap or u-bolt kit is a separate small part and is worth replacing with the joint. End yokes are filed under end yokes and transmission yokes.

Specification table

YokeLives onSpecified byProvides
Slip yokeTransmission / T-case output, or rear shaft of a two-pieceSpline, series, CL to endLength change, u-joint
Weld yokeEach end of the tubeTube OD x wall, series, CL to weldTube-to-joint connection
Flange yokeShaft end, bolts to companion flangeBCD, holes, pilot, seriesBolted connection, high torque
Companion flangePinion / gearbox / T-caseSpline, BCD, holes, pilotMating face for a flange yoke
End yokePinion, T-case, transmissionSpline, series, strap / u-bolt / bolted capFixed half of a u-joint
CV / double cardan headShaft end, high-angle sideSeries, centering style, flange pattern if anyConstant velocity through large angles

Choosing for a build

When you spec a shaft in the online builder, the yoke questions are, in order: what is on the transmission (spline for a slip yoke, or flange pattern), what is on the pinion (end yoke series, or flange pattern), and what series you want the shaft built in. The builder offers matching yokes at each step and prices the result. Three rules of thumb:

  • Match the series at each end to the yoke already on the vehicle, or use a conversion joint at one end. Do not try to convert both ends.
  • If the vehicle has a flange, keep the flange. Converting a flanged pinion to a yoke means a new companion flange and often a different pinion nut and seal.
  • For lifted or high-angle applications, put a CV (double cardan) head on the transfer case end and a single joint at the pinion; the angle guide explains why.

Still unsure which yoke you are looking at? Photograph each end square-on and send it to the shop. We identify yokes from photos every day.

Frequently asked questions

What is the difference between a slip yoke and an end yoke?

A slip yoke has an internal spline and slides on the transmission or transfer case output shaft, so it carries the u-joint and provides the length change. An end yoke has a splined bore and a nut, and is bolted permanently onto a pinion, transfer case or transmission output; it carries a u-joint but does not slide.

How do I identify a flange yoke?

Four numbers: the bolt circle diameter (center to center across opposite holes), the number and size of holes, the pilot diameter and whether the pilot is male (raised ring) or female (recess). Then the u-joint series, from the cap size. Our flange yoke listings carry all five.

Can I weld a yoke to the tube myself?

Weld yokes are designed to be welded, but the shaft must then be straightened to under 0.010 inch runout and balanced at speed. A shaft welded without a fixture almost always needs both. We sell weld yokes for people who have the equipment; for everyone else the online builder prices the finished assembly.

What slip yoke spline does my transmission have?

Count the splines on the output shaft and caliper the major diameter. Common light-truck sizes are 1.250 x 16 (TH350, 4L60, many Fords), 1.375 x 16 (NP205, 4L80, Dodge), 1.500 x 16 (Ford truck, NV4500), 27 spline (TH350/700R4 1.125 dia), 32 spline (4L80E, Ford 1.375 dia). Our slip yoke names list the spline and the centerline-to-end length.
