Flange Yoke Guideline

Identify a flange yoke: male flange with an extended pilot or female flange with a recessed pilot hole, bolt circle and hole pattern, with pictures.

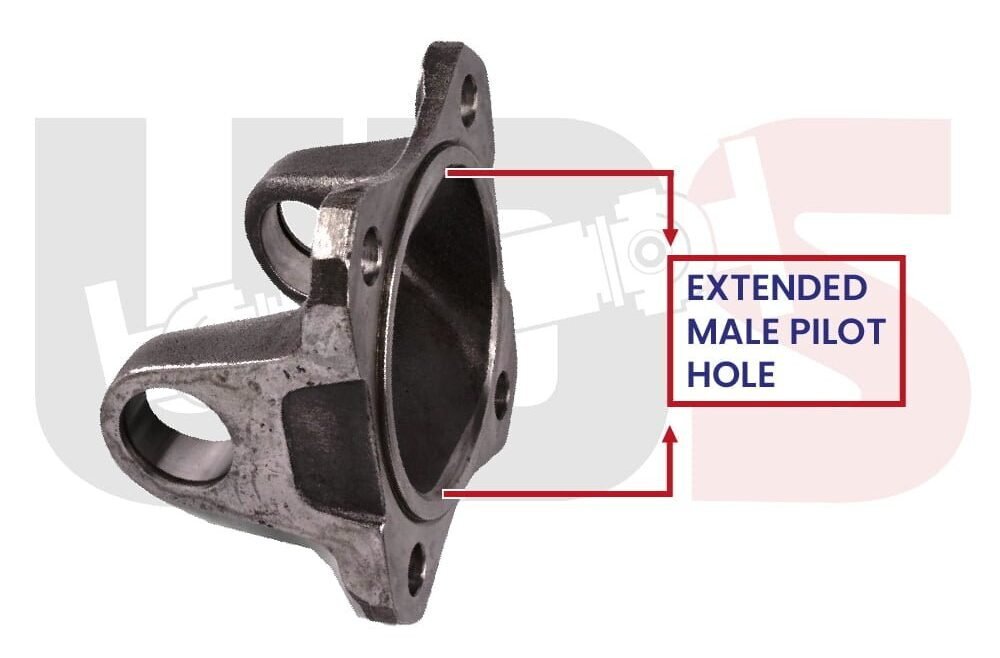

Male Flange (Extended Pilot Hole)

GuideMale Flange (Extended Pilot Hole)

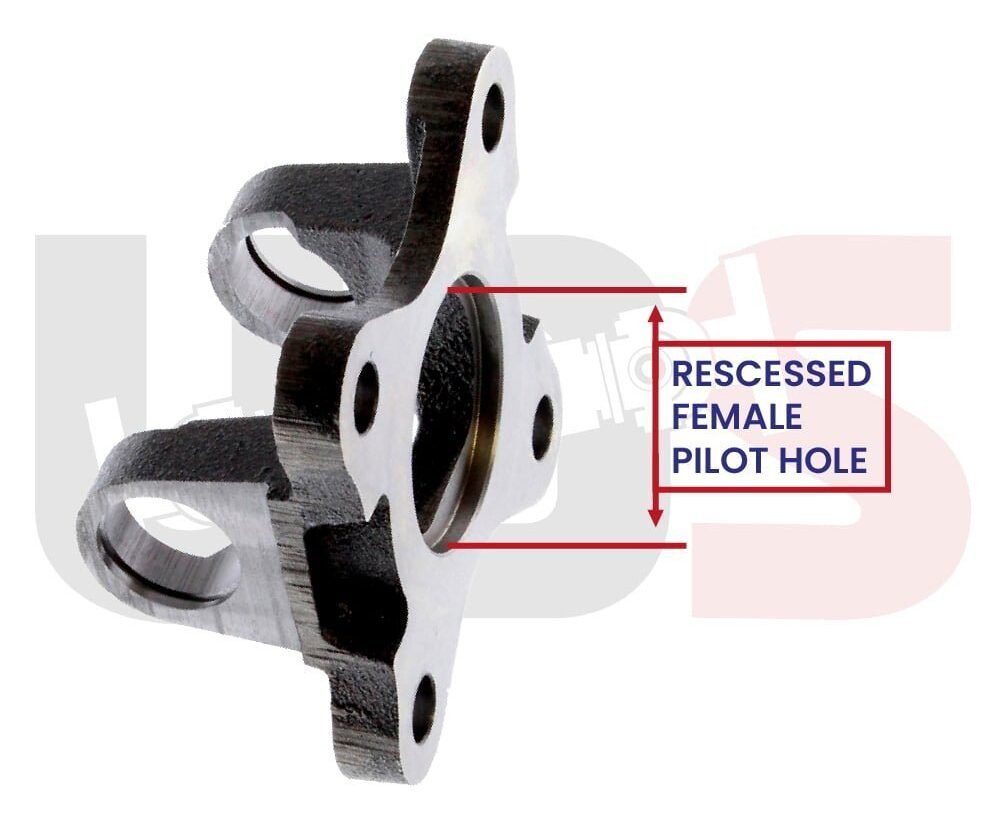

Female Flange (Recessed Pilot Hole)

GuideFemale Flange (Recessed Pilot Hole)

Definitions

A

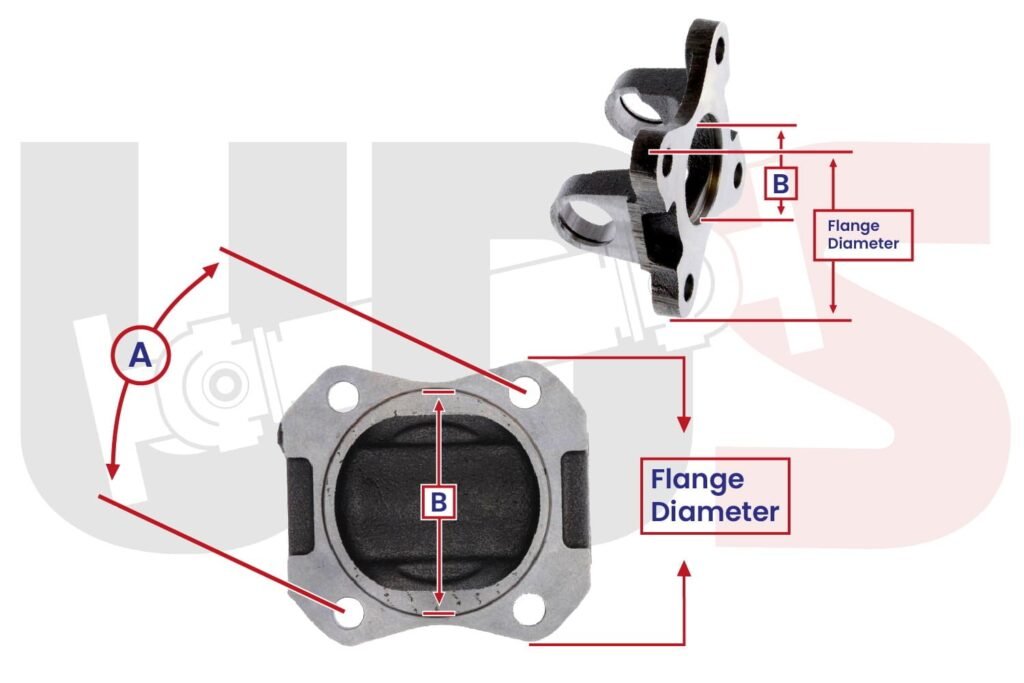

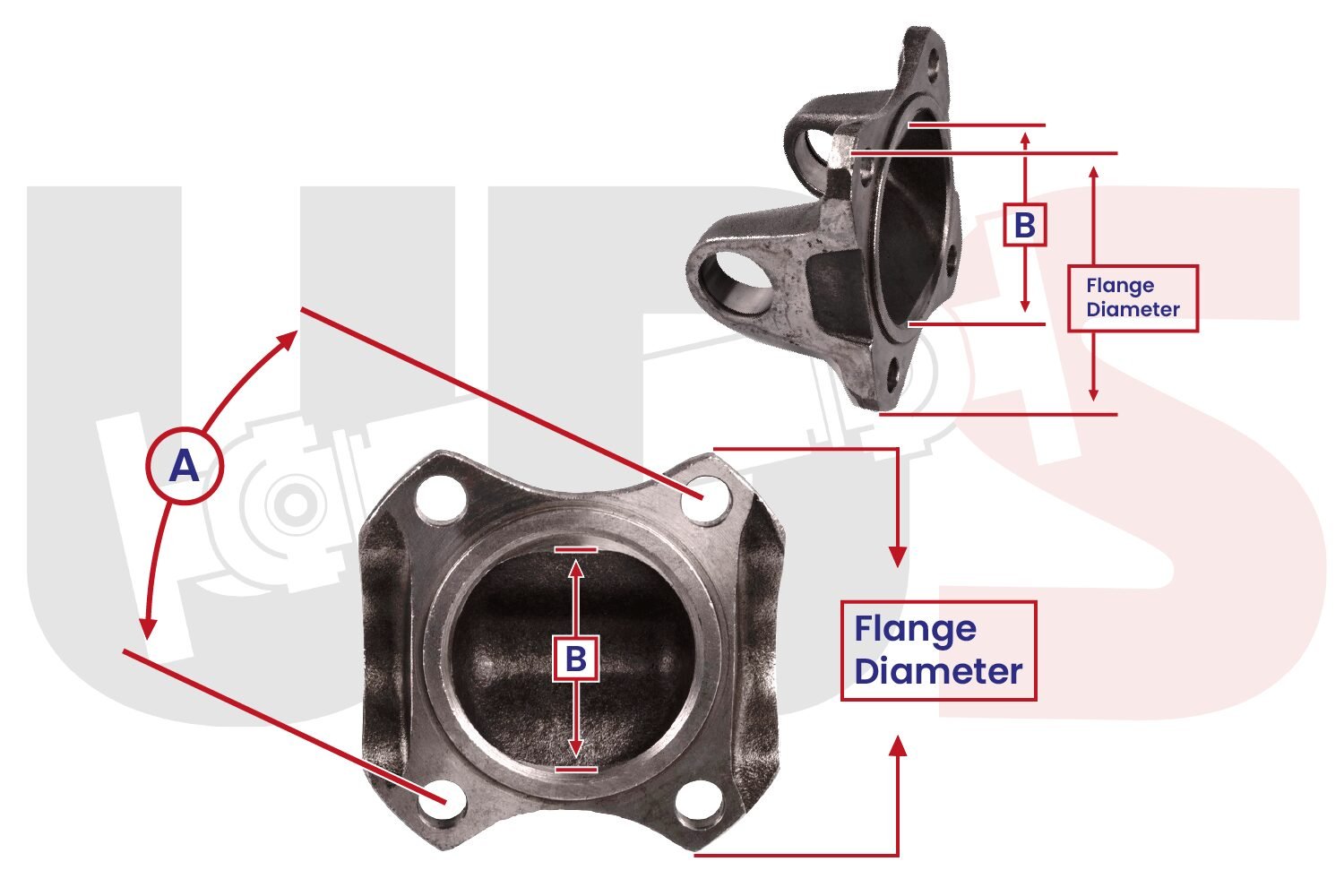

Bolt Circle Diameter
B
Are the Holes: Threaded or Drilled Is the Hole Pattern: Square or Rectangular

* Measure the major diameter (deepest part) inside the slip yoke.
** Some slip yokes have blank spaces called blind spots. Count each blind spot as one spline
