Companion Yoke Guide

Measure a companion yoke with a keyway or splines: outside diameter, bolt circle, pilot bore, bore, hub diameter and overall length.

With Keyway

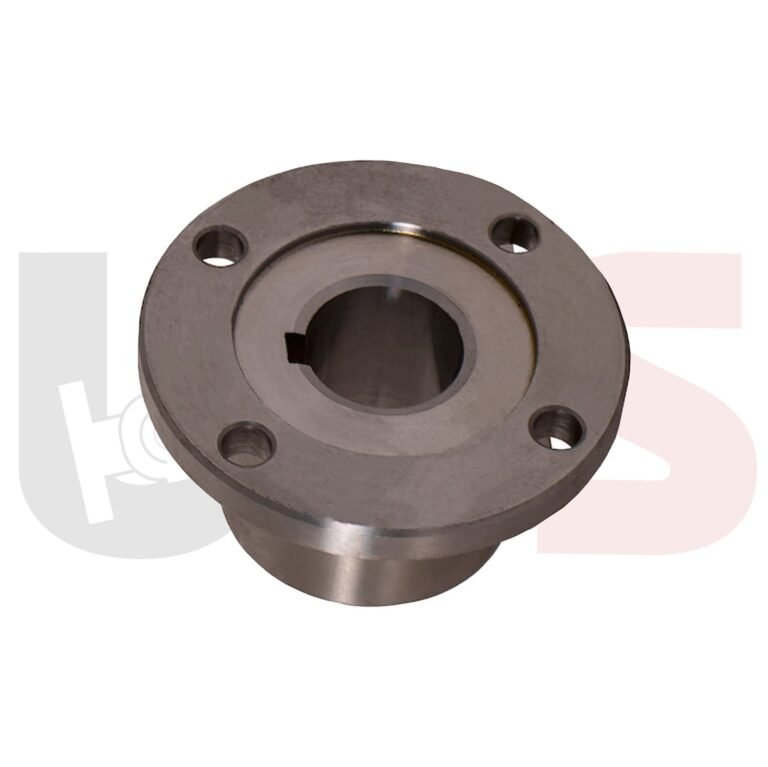

Companion yoke with a keyway

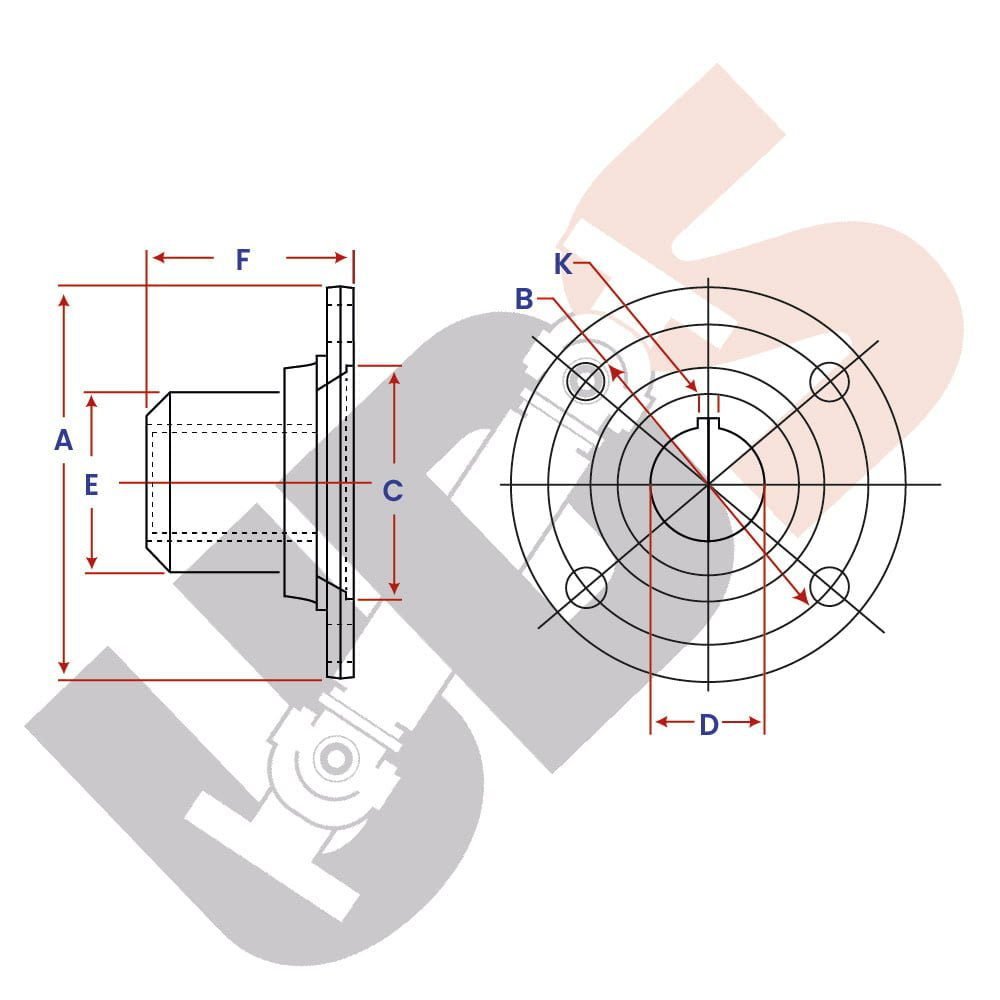

Companion yoke with a keyway: measuring diagram

Definitions

A
Outside Diameter
B
Bolt Circle Diameter
C
Pilot Bore Diameter
D
Bore Diameter
E
Hub Diameter
F
Overall Length
K
Keyway

Splined Yoke

Splined companion yoke

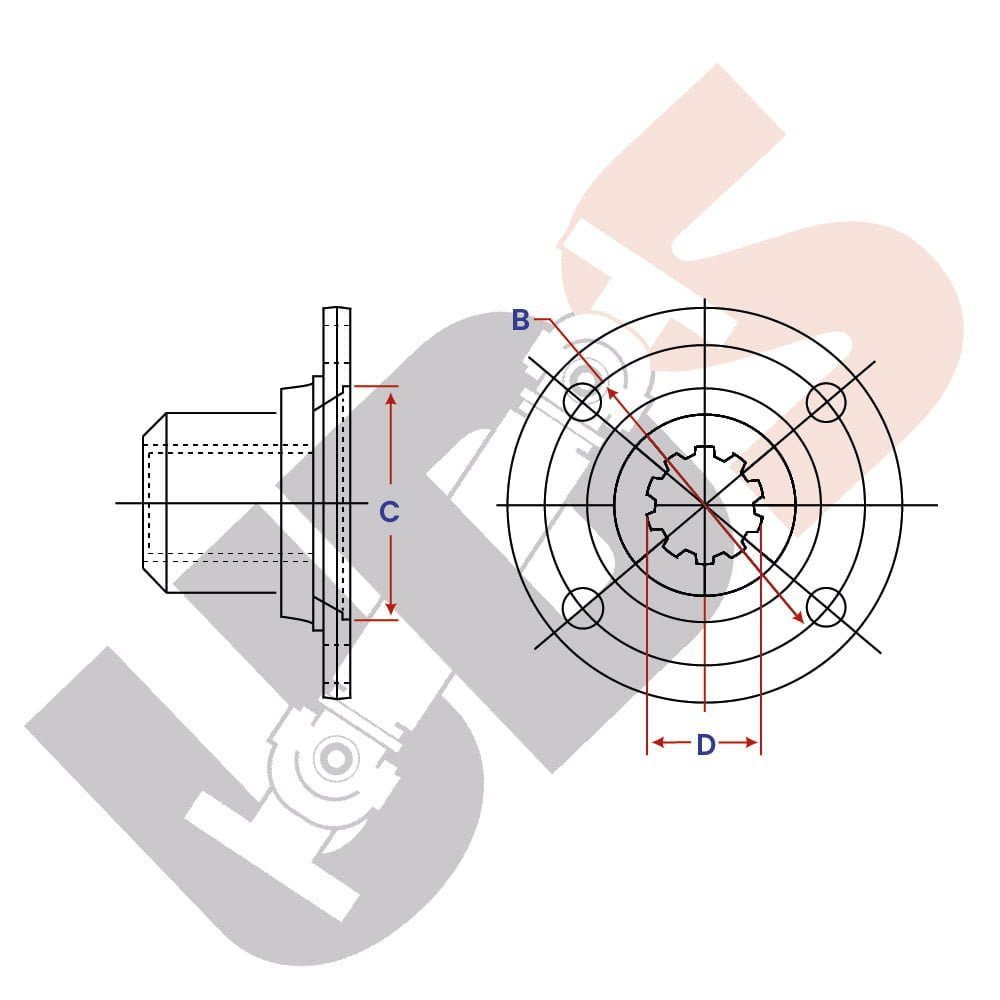

Splined companion yoke: measuring diagram

Definitions

A
Splines Diameter
B
Bolt Circle Diameter
C
Pilot Bore Diameter

Shop Companion Flanges

Not sure which part you have?

Send us the measurements or a photo and we will find the part number.
