3R25-20

$0.00

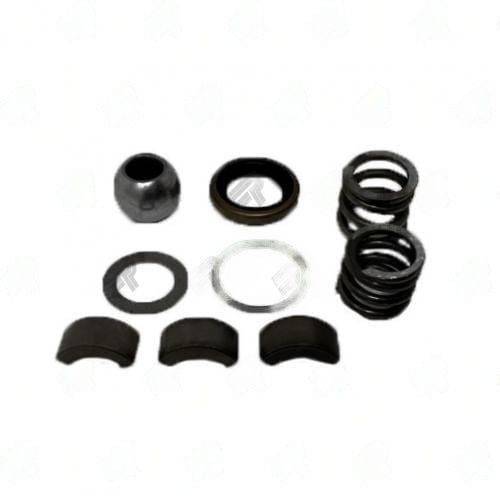

The 3R25-20 CV repair kit, commonly used across all 3R shafts, includes a stud bore diameter of 0.500 inches and a ball diameter of 0.908 inches. The seal has an outer diameter of 1.240 inches and a height of 0.197 inches. This kit is a comprehensive solution for 3R-style CV joints, containing the ball, seal, spring, seal support washer, and a three-piece ball seat.

3R25-20

$0.00

Additional information

Weight 0.7 lbs
Dimensions 25 × 18 × 10 in
BALL DIA

908
Notes

Commonly used on all 3R shafts!!!!
Partn number

3R25-20
SEAL HEIGHT

197
SEAL O.D

1.24
SERIES

3R
STUD BORE DIA

0.5
