2-9301 – Cv Ball Kit – Stud Bore Dia 625″ – Ball Dia 0.91″ – Seal Height 197″ – Seal O D 1.24″
Original price was: $0.00.$0.00Current price is: $0.00.
Description
The 2-9301 Cv Ball Kit is an essential component for maintaining and repairing CV joints, particularly in vehicles utilizing the 3R series. This kit features a stud bore diameter of 0.625 inches, which is crucial for ensuring a proper fit within the joint assembly. A precise fit is vital as it directly affects the joint’s ability to handle torque and maintain a constant velocity during operation.

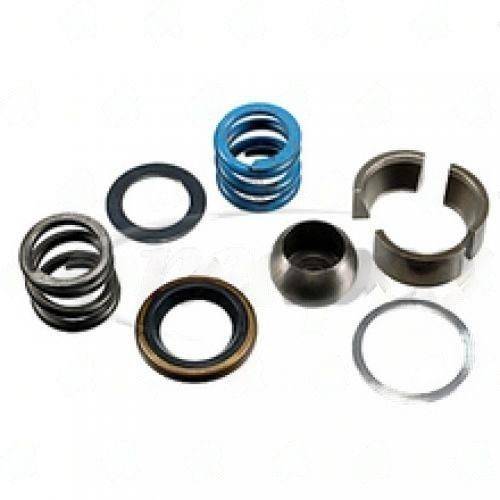

Included in the kit are three races, two springs, two shims, one seal, and one ball. The ball diameter measures 0.910 inches, which plays a significant role in the joint’s performance by allowing smooth motion at various angles. The seal has an outer diameter of 1.240 inches and a height of 0.197 inches, designed to prevent grease leakage and contamination, which can lead to premature wear and failure.
When installing the 2-9301, ensure that you pack the joint with the specified grease and use a new boot and clamps for optimal performance. Proper installation is key to preventing symptoms like clicking noises during turns, which indicate potential failure.
- Ball Diameter: 0.91 inches
- Stud Bore Diameter: 0.625 inches
- Includes: 3 races, 2 springs, 2 shims, 1 seal, 1 ball
- Seal Outer Diameter: 1.24 inches
- Seal Height: 0.197 inches
Overall, the 2-9301 Cv Ball Kit is designed to meet OE specifications, ensuring reliability and performance in your driveline system.
| Ball dia | 0.91 |
|---|---|
| Notes | 3 Race, 2 Springs, 2 Shims, 1 Seal, 1 Ball |
| Partn number | 2-9301 |
| Seal height | 197 |
| Seal o d | 1.24 |
| Series | 3R |
| Stud bore dia | 625 |
