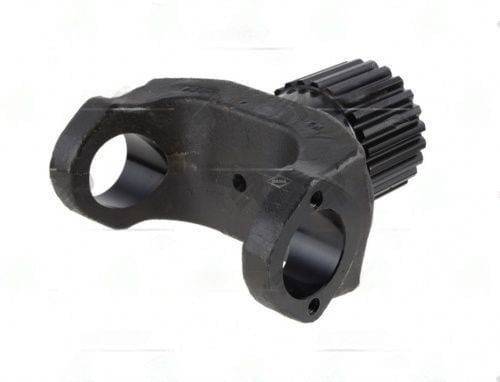

The 8-82-171-1 Drive Shaft Yoke Shaft from the 1880 series is a precision-engineered component designed for heavy-duty applications. It features a major spline diameter of 4.156 inches with 24 splines, providing a secure fit and reliable performance. The centerline to the end of the spline measures 7.219 inches, and the spline length is 2.625 inches. With an end/spline-to-point radius of 4.156 inches and a spline hole minor diameter of 3.703 inches, this yoke shaft ensures compatibility and durability in demanding mechanical systems. The spline width is 0.25 inches, offering additional strength and stability. The yoke shaft has a Type I configuration and follows a BP style design, with an 8.0° angle for optimal alignment. It comes with a VMRS code of 024002061, making it a reliable and high-performance choice for power transmission needs.
8-82-171-1U
SKU:
8-82-171-1U
$2,042.08
19
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
Weight | 4.5 lbs |
---|---|
Dimensions | 25 × 18 × 10 in |
C l to end |
7.219 |
Partn number |
8-82-171-1U |
Remaining stock |
10+ |
Series |
1880 |
Splines count |
24 |
Splines dia |
4.156 |
Splines length |
2.625 |
