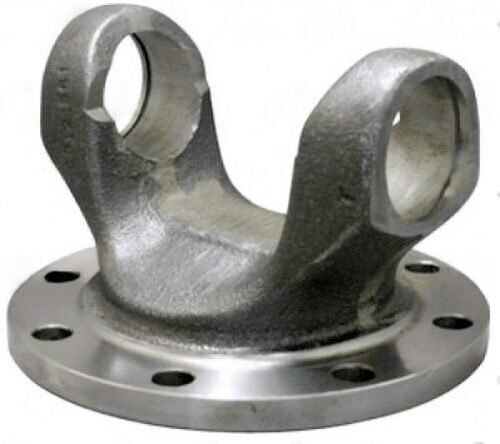

The 4802-1380 Flange Yoke is engineered for the 1480 Series U-joints, featuring a snap ring design for secure fitting. It has a universal joint retaining width of 4.438 inches and a bearing diameter of 1.375 inches. The flange diameter measures 5.118 inches, with a bolt circle diameter of 4.409 inches. It includes 8 bolt holes and a male pilot diameter of 3.248 inches. The centerline of the joint to the flange face is 2.362 inches, suitable for heavy-duty applications.
$41.24
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.409 |
| Bolt Hole Dia | 0.394, 8HOLES |
| CJ TO FLAT | 2.362 |
| Partn number | 4802-1380 |
| Pilot dia | 3.248, M |
| SERIES | 1480 |
