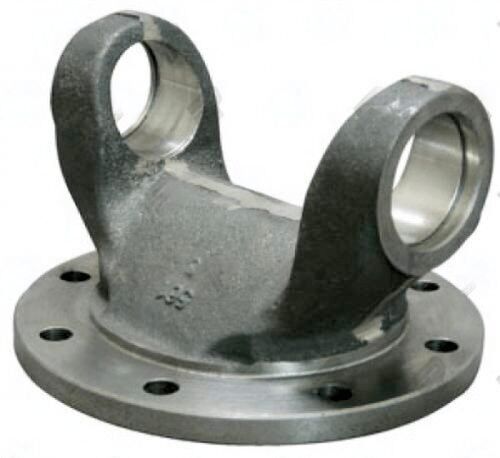

The 4102-1288U Flange Yoke for the 1410 Series is engineered for durability and precision. It features a female pilot diameter of 2.950 inches and a bolt circle diameter of 4.000 inches. The yoke includes 8 bolt holes, each with a diameter of 0.315 inches, and has a centerline to flat measurement of 2.250 inches, ensuring a secure and reliable fit for your driveshaft system.
$88.61
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.000 |
| Bolt Hole Dia | 0.315, 8HOLES |
| CJ TO FLAT | 2.250 |
| Partn number | 4102-1288 |
| Pilot dia | 2.950, F |
| SERIES | 1410 |
Available on backorder
IMPORTANT: Vehicle must be on a level surface with suspension at normal ride height for proper measurements. When measuring to the center bearing, measure to the center of the round or slotted carrier bearing bolt holes. Many carrier mounts are slotted for adjustment.
Measurement (A) :
Measure from the transmission output flange face to the center of the carrier bearing bolt holes.
Measurement (B) :
Measure from the center of carrier bearing bolt holes to the flats (center of u-joint or flats) on the end yoke at the differential.
