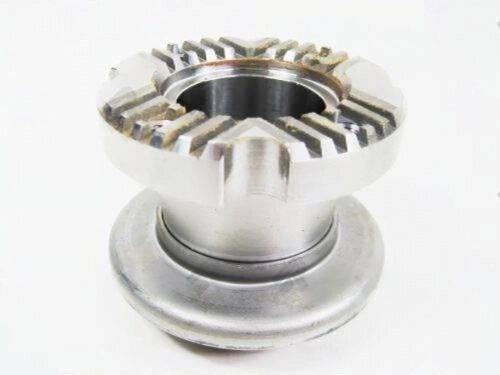

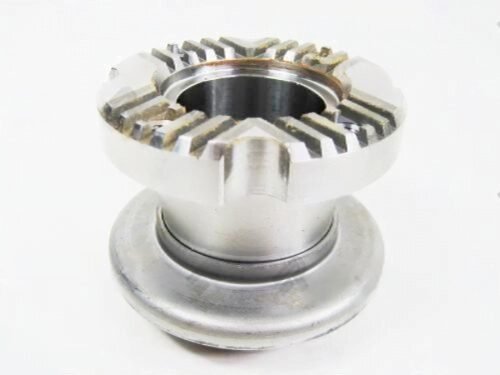

The 3R01-292 serrated pinion flange is designed for the Chrysler 9.25″ front beam axle, classified as light duty (LD). It features a spline count of 30 and a spline diameter of 1.312 inches, ensuring a secure connection. The hub diameter measures 2.110 inches, with a through hole of 1.150 inches and a pilot diameter of 2.150 inches. The bolt circle diameter is 2.913 inches, with four bolt holes sized at 0.334 inches. The face-to-end distance is 3.125 inches.

This OE Dodge pinion flange fits the 9.25″ beam front axle commonly found on Dodge Ram models from 2003 to 2011. It includes a removable speedy sleeve on the hub, which maintains the hub measurement of 2.110 inches when installed.

3R01-292

$101.19

Additional information

Weight 10 lbs
Dimensions 25 × 18 × 10 in
CJ TO END

3.125
HUB DIA

2.110"
Notes

CHRYSLER 9.25 FRONT SHAFT, SERRATED FLANGE TYPE
Partn number

3R01-292
SERIES

3R
SPLINES COUNT

30
SPLINES DIA

1.312
STYLE

SER
Through hole

1.150"

1 in stock (can be backordered)
