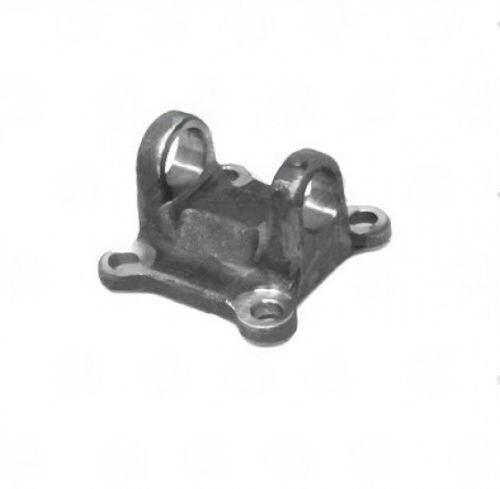

The Flange Yoke 2602-42, designed for the 7260 series U-joints, is built for high-performance driveline applications. It features a bolt circle diameter of 4.120 inches and includes 4 bolt holes with a diameter of 0.480 inches. The distance from the center of the joint (CJ) to the flat surface is 1.575 inches. The pilot diameter measures 1.772 inches (male). This yoke is engineered to provide robust and reliable performance in various driveline setups.
$61.53
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.120 |
| Bolt Hole Dia | 0.480, 4HOLES |
| CJ TO FLAT | 1.575 |
| Partn number | 2602-42 |
| Pilot dia | 1.772, M |
| SERIES | 7260 |
