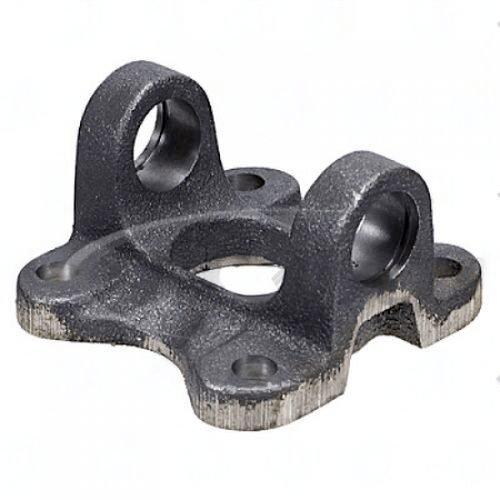

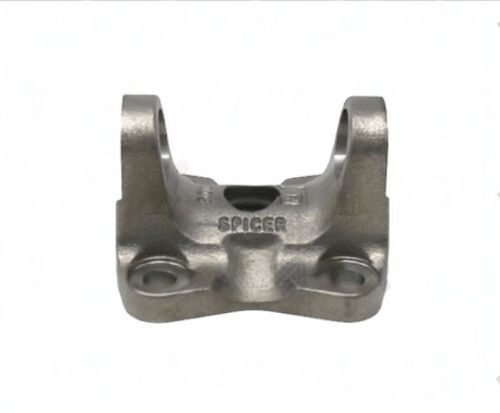

The 2-2-1369 Flange Yoke from the 1330 Series is designed for durability and precision. It features a 2.000″ female pilot diameter and an outside snap ring style. With a 4.250″ bolt circle and four bolt holes, it supports a U-joint width of 3.625″ and a bearing cap diameter of 1.062″. The flange face to centerline distance is 1.62″, and it accommodates a joint angle of 19 degrees.
$36.36
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 4.250 |
| Bolt Hole Dia | 0.500, 4HOLES |
| CJ TO FLAT | 1.625 |
| Partn number | 2-2-1369 |
| Pilot dia | 2.000, F |
| SERIES | 1330 |
