$38.36

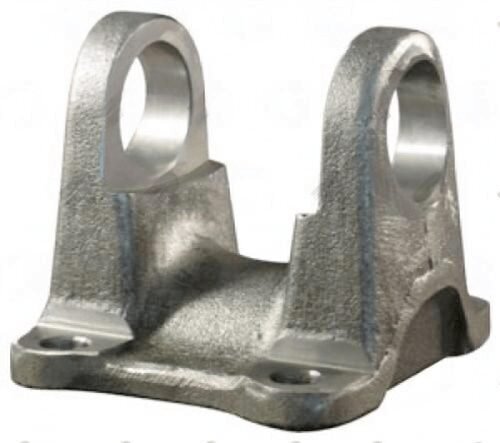

The Flange Yoke 1502-29 is specifically designed for Mazda car applications, featuring a snap ring design. It includes x0.3 tapped holes arranged on a bolt circle diameter of 2.946 inches. The pilot diameter measures Ø1.772 inches. This yoke has a universal joint retaining width of 1.717 inches and a universal joint bearing diameter of 0.985 inches. The bolt hole diameter is 0.325 inches.
$38.36
| Weight | 5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Bolt Circle Dia | 2.946 |
| Bolt Hole Dia | 0.325, 4HOLES |
| CJ TO FLAT | 1.750 |
| Partn number | 1502-29 |
| Pilot dia | 1.772, M |
| SERIES | OEM |
2 in stock (can be backordered)
